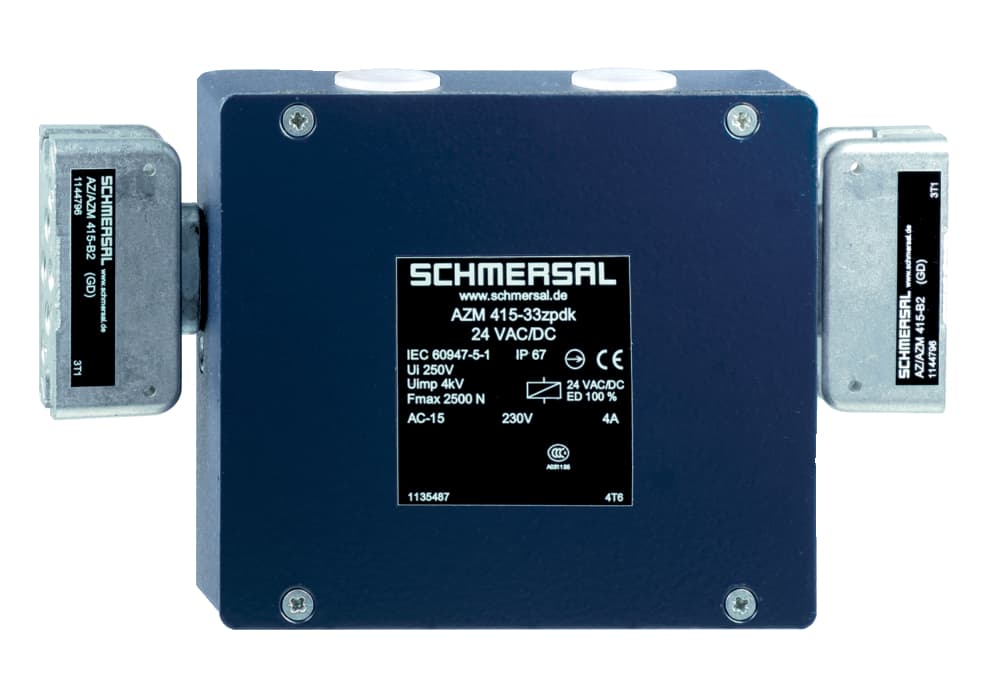

AZM 415-33ZPDK 110VAC Schmersal Safety Switch Interlocks

Product Details

• Number of actuating directions
  1
• Note (Clamping force)
  each guard
• Cable section, minimum
  2 x 0.75 mm²
• Rated impulse withstand voltage Uimp
  4 kV
• Utilisation category DC-13
  1 A
• Enclosure coating material
  painted
• Mechanical life, minimum
  1,000,000 Operations
• Terminal Connector
  Screw connection
• Degree of protection
  IP67
• Rated insulation voltage Ui
  250 V
• Gross weight
  1,240 g
• Power to unlock
  Yes
• Latching force, maximum
  400 N
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Ambient temperature, minimum
  -25 °C
• Number of safety contacts
  3
• Actuating speed, maximum
  0.2 m/s
• Rated control voltage
  110 VAC
• Switching element
  NO contact, NC contact
• Material of the contacts, electrical
  Silver
Latching force, minimum
150 N
Length of sensor
46.5 mm
Thermal test current
6 A
Number of auxiliary contacts
3
Positive break force, minimum
15 N
Height of sensor
125 mm
Switching principle
Creep circuit element
Enclosure material
Aluminium
positive break travel
4.5 mm
Width of sensor
141 mm
Electrical power consumption, maximum
10 W
Utilisation category AC-15
4 A
Active principle
electromechanical
Standards
EN 60947-5-1, BG-GS-ET-19
Number of guard doors
2
Clamping force in accordance with ISO14119 Fzh
2,500 N
Cable section, maximum
2 x 2.5 mm²
Ambient temperature, maximum
+50 °C
