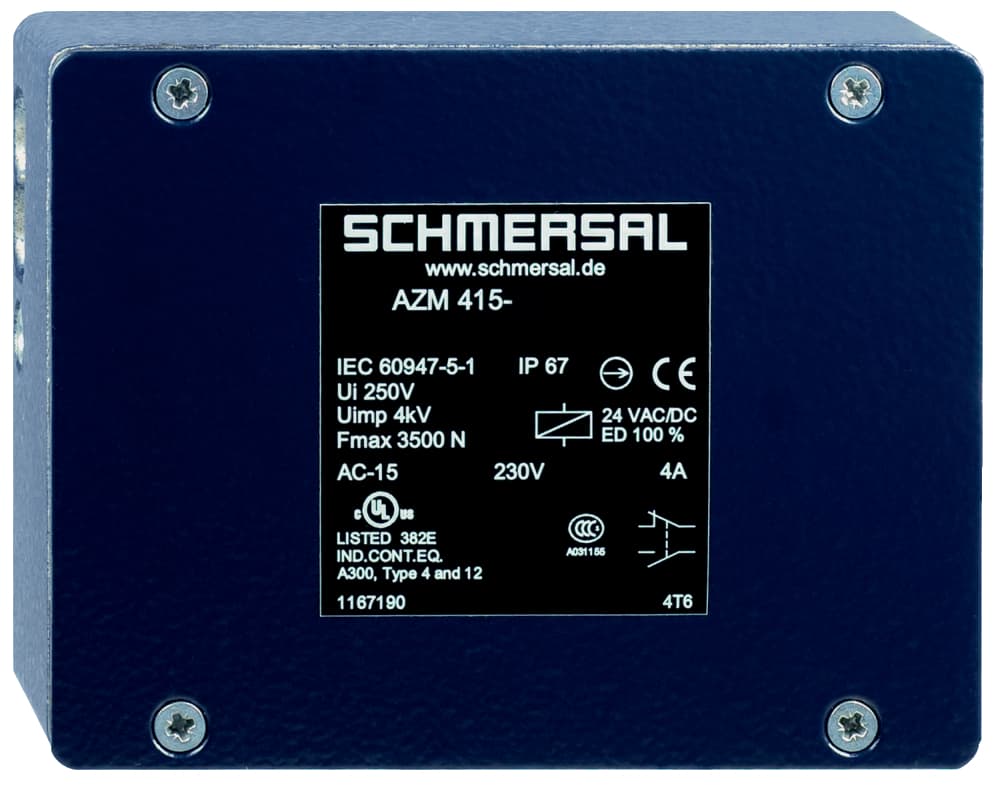

AZM 415-11/11ZPK 24VAC/DC Schmersal Safety Switch Interlocks

Product Details

• Number of safety contacts
  2
• Active principle
  electromechanical
• Actuating speed, maximum
  0.2 m/s
• Length of sensor
  46.5 mm
• Electrical power consumption, maximum
  10 W
• Enclosure material
  Aluminium
• Power to unlock
  Yes
• Clamping force in accordance with ISO14119 Fzh
  3,500 N
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Rated impulse withstand voltage Uimp
  4 kV
• Number of auxiliary contacts
  2
• Positive break force, minimum
  15 N
• Ambient temperature, minimum
  -25 °C
• Rated control voltage
  24 VAC/DC
• Gross weight
  1,000 g
• Latching force, minimum
  150 N
• Cable section, maximum
  2 x 2.5 mm²
• Rated insulation voltage Ui
  250 V
• Utilisation category AC-15
  230 VAC
• Material of the contacts, electrical
  Silver
Number of guard doors
1
Latching force, maximum
400 N
Width of sensor
130 mm
Enclosure coating material
painted
positive break travel
5 mm
Degree of protection
IP67
Thermal test current
6 A
Standards
EN 60947-5-1, BG-GS-ET-19
Cable section, minimum
2 x 0.75 mm²
Ambient temperature, maximum
+50 °C
Utilisation category DC-13
1 A
Mechanical life, minimum
1,000,000 Operations
Number of actuating directions
1
Terminal Connector
Screw connection
Height of sensor
100 mm
Switching principle
Creep circuit element
Switching element
NO contact, NC contact
