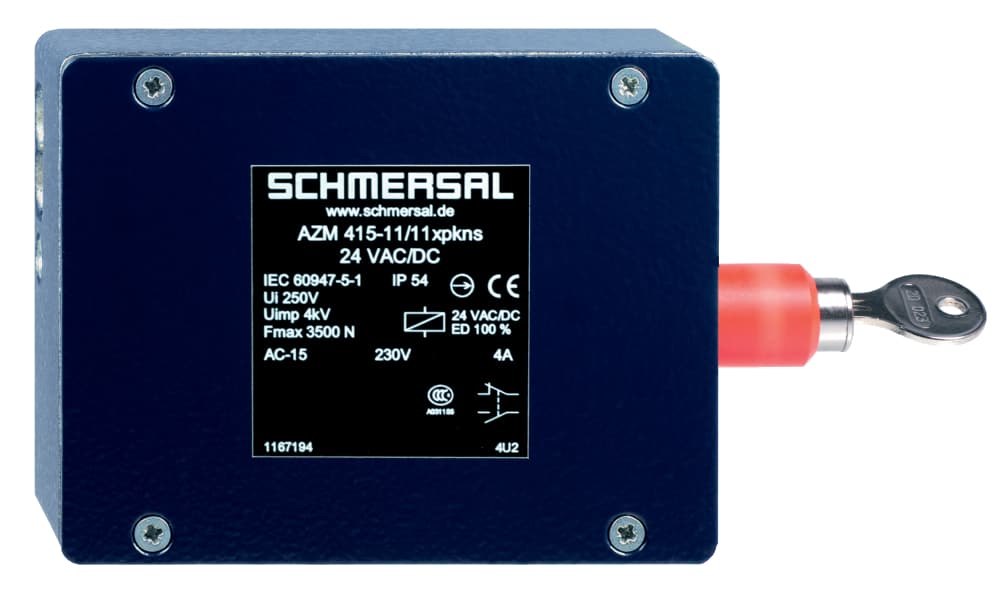

AZM 415-11/11XPKNS 24VAC/DC Schmersal Safety Switch Interlocks

Product Details

• Power to unlock
  Yes
• Standards
  EN 60947-5-1, BG-GS-ET-19
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Gross weight
  1,070 g
• Mechanical life, minimum
  1,000,000 Operations
• Width of sensor
  162 mm
• Rated impulse withstand voltage Uimp
  4 kV
• Electrical power consumption, maximum
  10 W
• Active principle
  electromechanical
• Number of guard doors
  1
• Actuating speed, maximum
  0.2 m/s
• Utilisation category AC-15
  230 VAC
• Emergency release
  Yes
• Number of safety contacts
  2
• Cable section, minimum
  2 x 0.75 mm²
• Ambient temperature, maximum
  +50 °C
• Switching element
  NO contact, NC contact
• Number of actuating directions
  1
• Clamping force in accordance with ISO14119 Fzh
  3,500 N
• Height of sensor
  100 mm
Rated insulation voltage Ui
250 V
Enclosure material
Aluminium
Latching force, minimum
150 N
Terminal Connector
Screw connection
Thermal test current
6 A
Switching principle
Creep circuit element
Enclosure coating material
painted
positive break travel
5 mm
Length of sensor
46.5 mm
Ambient temperature, minimum
-25 °C
Material of the contacts, electrical
Silver
Latching force, maximum
400 N
Degree of protection
IP54
Rated control voltage
24 VAC/DC
Number of auxiliary contacts
2
Positive break force, minimum
15 N
Cable section, maximum
2 x 2.5 mm²
Utilisation category DC-13
1 A
