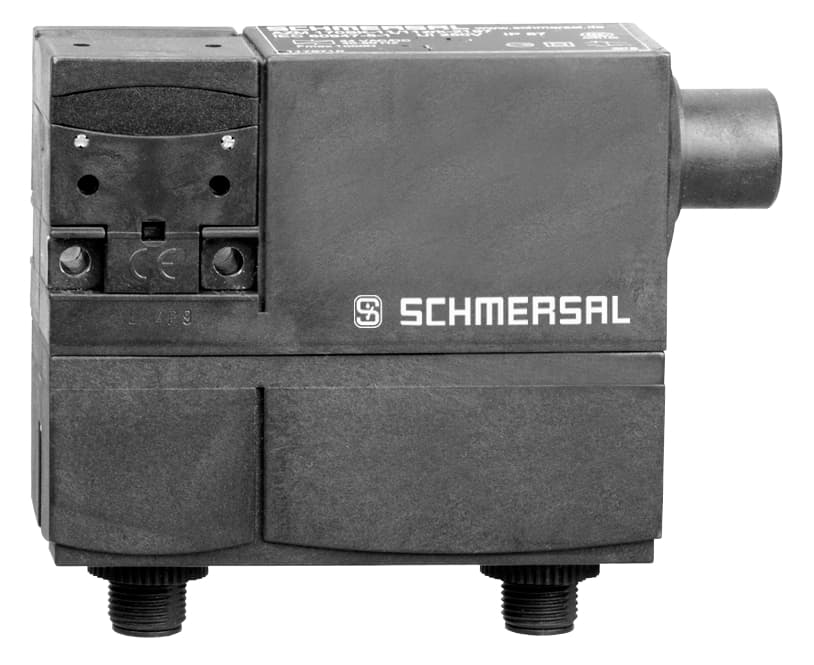

AZM 170ST-11/11ZRK-2197 24VAC/DC Schmersal Safety Switch Interlocks

Product Details

• Material of the contacts, electrical
  Silver
• Width of sensor
  108 mm
• Number of safety contacts
  2
• Rated impulse withstand voltage Uimp
  0.8 kV
• Manual release
  Yes
• Number of auxiliary contacts
  2
• Power to unlock
  Yes
• Actuating speed, maximum
  2 m/s
• Gross weight
  310 g
• Positive break force, minimum
  8.5 N
• Degree of protection
  IP67 to EN 60529
• Coding level according to ISO 14119
  Low
• Mechanical life, minimum
  1,000,000 Operations
• Height of sensor
  92.5 mm
• Rated control voltage
  24 VAC/DC
• Current, Utilisation category DC13
  2 A
• Rated insulation voltage Ui
  60 V
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Number of actuating directions
  2
• Ambient temperature, maximum
  +60 °C
Switching frequency
1,000 /h
Active principle
electromechanical
Note (Switching element)
Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
positive break travel
11 mm
Thermal test current
2 A
Voltage, Utilisation category DC13
24 VDC
Latching force
30 N
Length of sensor
30 mm
Switching principle
Creep circuit element
Standards
EN 60947-5-1, BG-GS-ET-19
Clamping force in accordance with ISO14119 Fzh
1,000 N
Terminal Connector
Connector plug M12, 4-pole, (A-coding), Connector plug M12, 8-pole, (A-coding)
Switching element
NO contact, NC contact
Ambient temperature, minimum
-25 °C
Electrical power consumption, maximum
10 W
