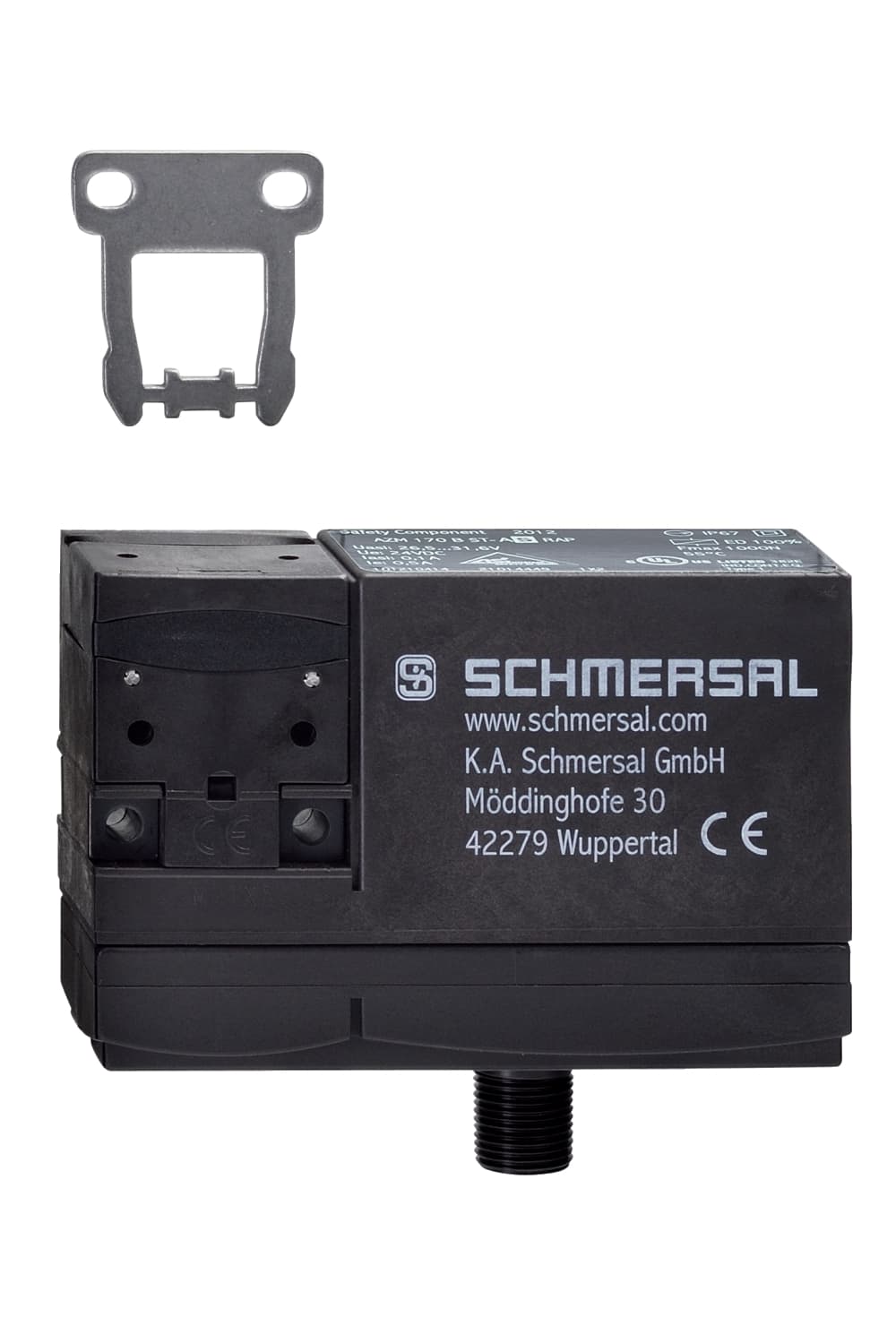

AZM 170 BZ ST-AS RP-2197 Schmersal Safety Switch Interlocks

Product Details

• Standards
  IEC 61508, EN 60947-5-1, EN 62026-2
• Latching force
  30 N
• Manual release
  Yes
• Storage and transport temperature, minimum
  -25 °C
• Actuator and interlock combined monitored
  Yes
• Overvoltage category
  III
• AS-i Version
  V 2.1
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Parameter bits, P1
  Solenoid interlock locked
• Number of actuating directions
  2
• Terminal Connector
  Connector plug M12, 4-pole, (A-coding)
• Height of sensor
  75.5 mm
• Active principle
  electromechanical
• Protection rating
  II
• Degree of pollution to VDE 0100
  3
• AS-i, ID-Code
  0xB
• AS-i Outputs, DO 2
  No Function
• AS-i Parameter bits, P2
  No function
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Mechanical life, minimum
  1,000,000 Operations
Integral System Diagnostics, status
Yes
Gross weight
320 g
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Rated impulse withstand voltage Uimp
0.8 kV
AS-i Profile
S-7.B.F.E
AS-i, IO-Code
0x7
AS-i Outputs, DO 1
No Function
AS-i Input module address
0
Clamping force
1,000 N
Width of sensor
108 mm
Ambient temperature, minimum
-25 °C
Relative humidity, minimum
30 %
AS-i Current consumption, maximum
100 mA
AS-i, ID-Code1
0xF
AS-i Outputs, DO 3
No Function
Operating current
500 mA
Actuating speed, maximum
2 m/s
Degree of protection
IP67 to EN 60529
Relative humidity, maximum
95 %
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i, ID-Code2
0xE
AS-i Parameter bits, P0
Safety guard and actuator detected
Power to unlock
Yes
Ambient temperature, maximum
+55 °C
Note (Relative humidity)
non-condensing, non-icing
AS-i Operating voltage, minimum
26.5 VDC
AS-i Specification
Safety-Slave
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
Note (AS-i Parameter bits)
Set the parameter outputs to "1111" (0xF), FID: periphery error
Reaction time, maximum
100 ms
Storage and transport temperature, maximum
+85 °C
Rated insulation voltage Ui
32 VDC
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Input, Channel 1
Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Parameter bits, P3
No function
Rated operating voltage
24 VDC -15% / +10% (stabilised PELV)
