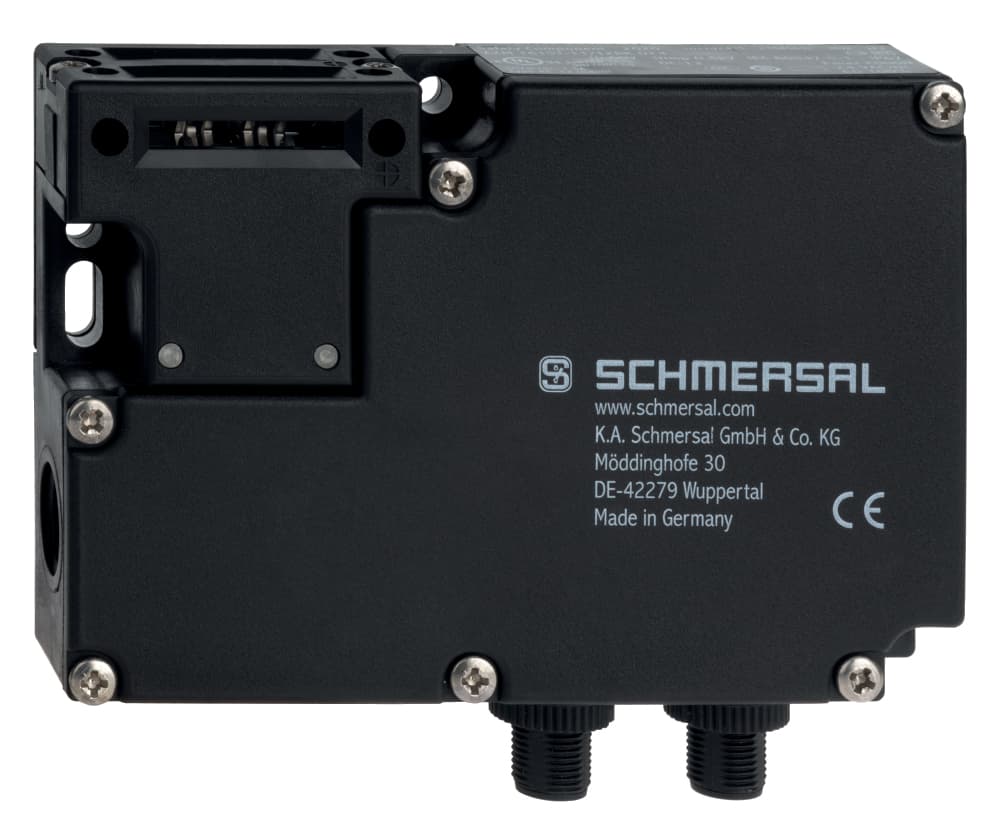

AZM 161ST-12/11K-024 Schmersal Safety Switch Interlocks

Product Details

• positive break travel
  10 mm
• Material of the contacts, electrical
  Silver
• Length of sensor
  30 mm
• Rated impuls withstand voltage, connector 8-pole
  0.8 kV
• Switching frequency
  1,000 /h
• Coding level according to ISO 14119
  Low
• Number of auxiliary contacts
  2
• Ambient temperature, minimum
  -25 °C
• Electrical power consumption, maximum
  10 W
• Switching principle
  Creep circuit element
• Current, Utilisation category AC-15
  4 A
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Actuating speed, maximum
  2 m/s
• Rated insulation voltage Ui
  Connector, 4 poles - 250 V, Connector, 8 poles - 60 V, 250 V
• Number of safety contacts
  3
• Latching force
  5 N
• Ambient temperature, maximum
  +60 °C
• Thermal test current
  2 A
• Current, Utilisation category DC13
  2 A
• Rated impuls withstand voltage, connector 4-pole
  2.5 kV
Power to unlock
Yes
Actuating play in direction of actuation
5.5 mm
Height of sensor
90 mm
Gross weight
490 g
Positive break force, minimum
10 N
Mechanical life, minimum
1,000,000 Operations
Required rated short-circuit current to EN 60947-5-1
1,000 A
Voltage, Utilisation category DC13
60 VDC
Number of actuating directions
3
Standards
EN 60947-5-1, BG-GS-ET-19
Width of sensor
130 mm
Rated control voltage
24 VAC/DC
Terminal Connector
Connector plug M12, 4-pole, (A-coding), Connector plug M12, 8-pole, (A-coding)
Switching element
NO contact, NC contact
Manual release
Yes
Clamping force in accordance with ISO14119 Fzh
2,000 N
Active principle
electromechanical
Degree of protection
IP67 to EN 60529
Rated impulse withstand voltage Uimp
0.8 kV
Voltage, Utilisation category AC15
230 VAC
