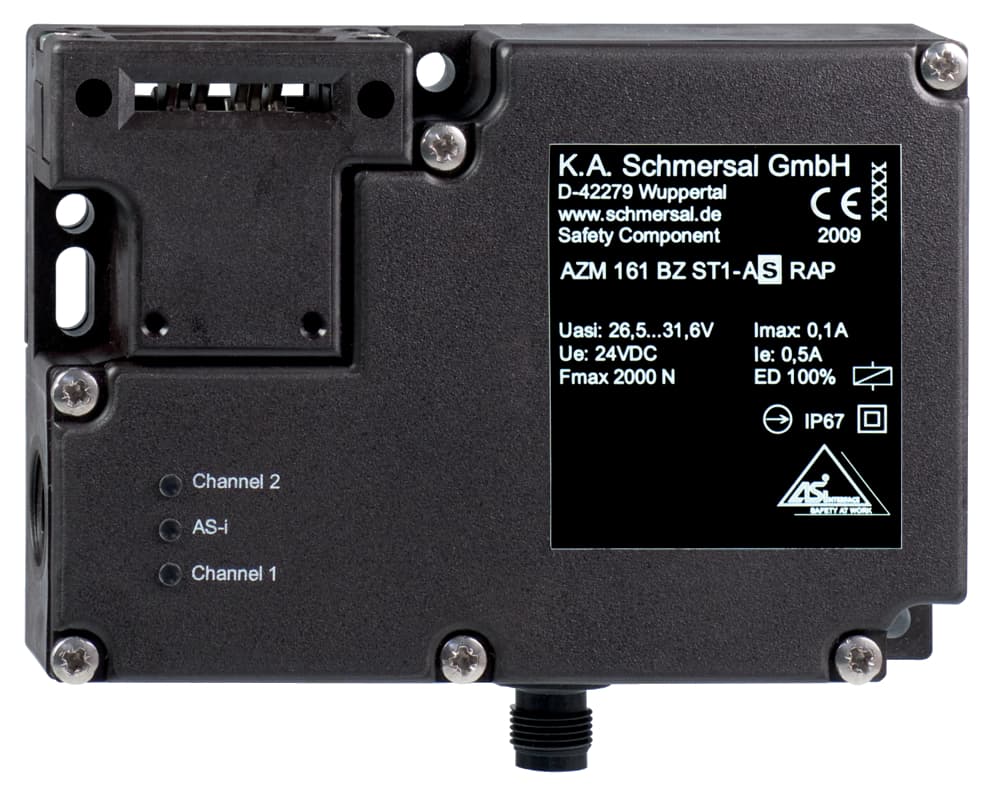

AZM 161 Z ST2-AS RA Schmersal Safety Switch Interlocks

Product Details

• Standards
  IEC 61508, EN 60947-5-1, EN 62026-2
• Number of actuating directions
  3
• Latching force
  30 N
• Storage and transport temperature, minimum
  -25 °C
• Resistance to vibrations to EN 60068-2-6
  10 Hz ... 150 Hz, amplitude 0.35 mm
• AS-i Operating voltage, minimum
  26.5 VDC
• AS-i Current consumption, maximum
  250 mA
• AS-i, ID-Code2
  0xE
• AS-i Parameter bits, P1
  Solenoid interlock locked
• Power to lock
  Yes
• Actuating play in direction of actuation
  5.5 mm
• Degree of protection
  IP67 to EN 60529
• Ambient temperature, minimum
  -25 °C
• Rated insulation voltage Ui
  32 VDC
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• AS-i Outputs, DO 3
  No Function
• Active principle
  electromechanical
• Mechanical life, minimum
  1,000,000 Operations
• Width of sensor
  130 mm
• Ambient temperature, maximum
  +60 °C
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i, ID-Code1
0xF
AS-i Input, Channel 1
Data bits DI 0 / DI 1 = dynamic code transmission
Note (AS-i Parameter bits)
Set the parameter outputs to "1111" (0xF), FID: periphery error
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Connector position
Right
Storage and transport temperature, maximum
+85 °C
Rated impulse withstand voltage Uimp
0.8 kV
AS-i Version
V 2.1
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Parameter bits, P3
Error message - locking/unlocking of the solenoid interlock blocked
Gross weight
465 g
Actuating speed, maximum
2 m/s
Note (Relative humidity)
non-condensing, non-icing
Switching frequency
1,000 /h
AS-i, ID-Code
0xB
AS-i Outputs, DO 2
No Function
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Guard locking monitored
Yes
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Relative humidity, maximum
95 %
Degree of pollution to VDE 0100
3
AS-i, IO-Code
0x7
AS-i Outputs, DO 0
Solenoid control
AS-i Parameter bits, P2
Magnet voltage in tolerance range
Reaction time, maximum
100 ms
Length of sensor
30 mm
Relative humidity, minimum
30 %
Overvoltage category
III
AS-i Profile
S-7.B.F.E
AS-i Outputs, DO 1
No Function
AS-i Input module address
0
Integral System Diagnostics, status
Yes
Manual release
Yes
Clamping force
2,000 N
Height of sensor
90 mm
Restistance to shock
30 g / 11 ms
Protection rating
II
AS-i Specification
Safety-Slave
AS-i Parameter bits, P0
Actuator detected
