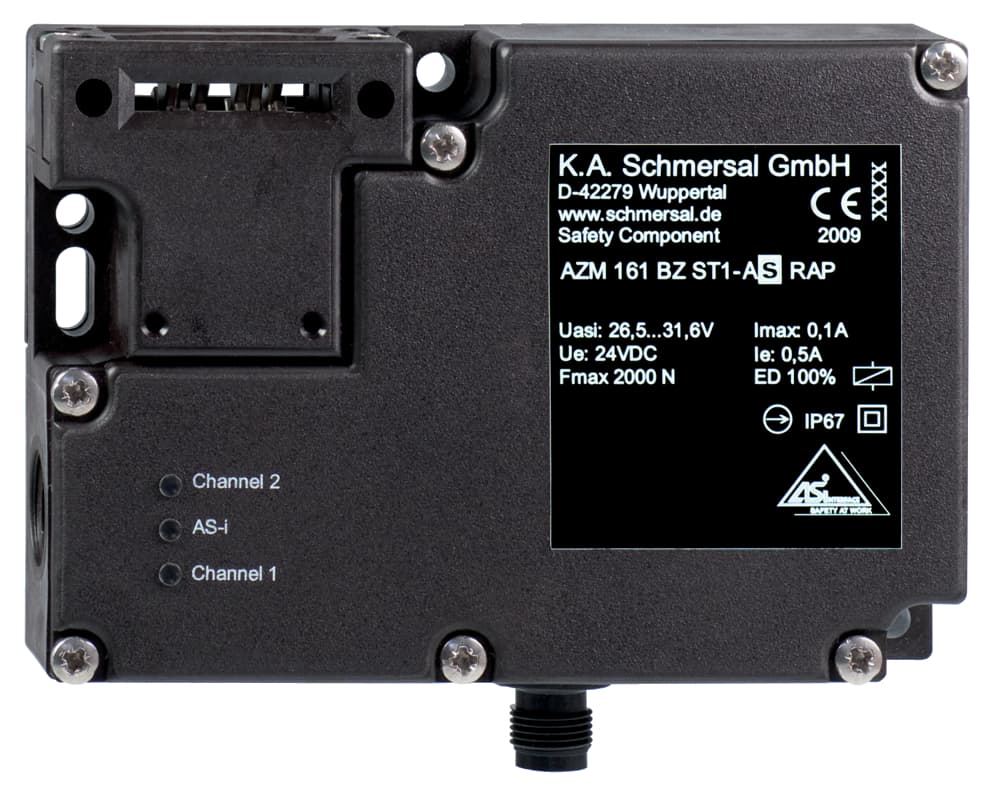

AZM 161 Z ST1-AS PT Schmersal Safety Switch Interlocks

AZM 161 Z ST1-AS PT on Applied Automation
Schmersal

Part#:AZM 161 Z ST1-AS PT

Alt. Part#:101209115

Manufacturer:Schmersal

Category:Safety Switch Interlocks

Product Lifecycle:Active

Product description

AS interface safety at work; Safety switchgear; Solenoid supply 24 VDC (Aux); Guard locking monitored; Emergency exit; Solenoid interlock; Thermoplastic enclosure; High holding force 2000; 130 mm x 90 mm x 30 mm; Interlock with protection against incorrec

Product Details

  • Standards
    IEC 61508, EN 60947-5-1, EN 62026-2
  • Length of sensor
    30 mm
  • Note (Relative humidity)
    non-condensing, non-icing
  • Degree of pollution to VDE 0100
    3
  • AS-i Profile
    S-7.B.F.E
  • AS-i Input, Channel 1
    Data bits DI 0 / DI 1 = dynamic code transmission
  • Operating current
    500 mA
  • Integral System Diagnostics, status
    Yes
  • Actuating play in direction of actuation
    5.5 mm
  • Ambient temperature, minimum
    -25 °C
  • Relative humidity, minimum
    30 %
  • Switching frequency
    1,000 /h
  • AS-i, ID-Code1
    0xF
  • AS-i Parameter bits, P0
    Actuator detected
  • AS-i Parameter bits, P3
    Error message - locking/unlocking of the solenoid interlock blocked
  • Guard locking monitored
    Yes
  • Emergency exit
    Yes
  • Gross weight
    465 g
  • Number of actuating directions
    3
  • Connector position
    Bottom
  • Storage and transport temperature, minimum
    -25 °C
  • Overvoltage category
    III
  • AS-i Version
    V 2.1
  • AS-i Outputs, DO 2
    No Function
  • Note (AS-i Parameter bits)
    Set the parameter outputs to "1111" (0xF)
  • Power to unlock
    Yes
  • Clamping force
    2,000 N
  • Actuating speed, maximum
    2 m/s
  • Storage and transport temperature, maximum
    +85 °C
  • Width of sensor
    130 mm
  • Relative humidity, maximum
    95 %
  • Restistance to shock
    30 g / 11 ms
  • Rated insulation voltage Ui
    32 VDC
  • Note (AS-i Operating voltage)
    Protection against polarity reversal
  • AS-i Operating voltage AS-i maximum
    31.6 VDC
  • AS-i, ID-Code
    0xB
  • AS-i Input, Channel 2
    Data bits DI 2 / DI 3 = dynamic code transmission
  • AS-i Parameter bits, P1
    Solenoid interlock locked
  • AS-i Parameter bits, P2
    Magnet voltage in tolerance range
  • Active principle
    electromechanical
  • Terminal Connector
    Connector plug M12, 4-pole, (A-coding)
  • Degree of protection
    IP67 to EN 60529
  • Protection rating
    II
  • AS-i Operating voltage, minimum
    26.5 VDC
  • AS-i Specification
    Safety-Slave
  • AS-i Outputs, DO 1
    No Function
  • AS-i Outputs, DO 3
    No Function
  • Rated operating voltage
    24 VDC -15% / +10% (stabilised PELV)
  • Enclosure material
    Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
  • Reaction time, maximum
    100 ms
  • Latching force
    5 N
  • Mechanical life, minimum
    1,000,000 Operations
  • Height of sensor
    90 mm
  • Ambient temperature, maximum
    +60 °C
  • Resistance to vibrations to EN 60068-2-6
    10 Hz ... 150 Hz, amplitude 0.35 mm
  • Rated impulse withstand voltage Uimp
    0.8 kV
  • AS-i Current consumption, maximum
    100 mA
  • AS-i, IO-Code
    0x7
  • AS-i Outputs, DO 0
    Solenoid control
  • AS-i, ID-Code2
    0xE
  • AS-i Input module address
    0
  • Note (AS-i Input module address)
    Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
