W6577A3407Z ROSS Controls Electronic Components
Part#:W6577A3407Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

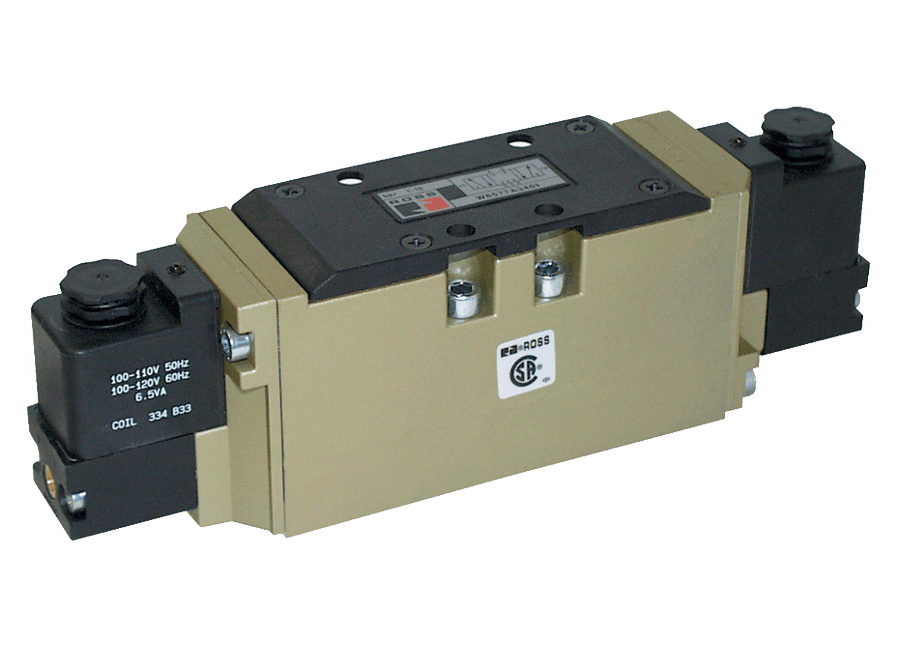

ISO 5599-2 Valve, Size 2, W65 Series, 5/2 Double, Solenoid Controlled, Spool & Sleeve, 110/120 VAC
Product Details
- Duty Rating Continuous Duty
- Pilot Type Internal/External
- Operating Pressure (bar) 1 to 10
- Width (mm) 225.8
- Valve Type Directional Control
- Media Temperature (Celsius) 4 to 80
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Function 5/3 Double Solenoid
- Construction Spool and Sleeve
- Valve Body Material Cast Aluminum
- Power Consumption 6.5 VA holding on 50 or 60 Hz
- Weight (kg) 1.2
- Manual Override Non-locking
- Media Temperature 40 to 175 F (4 to 80 C)
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Voltage 110/120 VAC
- Series W65
- Poppet/Spool Material Stainless Steel
- Ambient Temperature (Celsius) 4 to 50
- Width 8.89 in (225.8 mm)
- Valve Standard ISO 5599-2
- Actuation Electrical
- Return Detented
- Length 2.0 in (50.8 mm)
- Connection Hardwired
- Center Position Open
- Seal Material Buna-N
- Length (mm) 50.8
- Mounting Base Mounted
- Avg Cv 2.3
- Height 2.77 in (70.4 mm)
- Default Position Normally Open
- Size 2
- Weight 2.5 lb (1.2 kg)
- Application Standard Temperature
- Fluid Media Filtered air
- Pilot Supply Minimum equal to or greater than inlet pressure
- Height (mm) 70.4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
