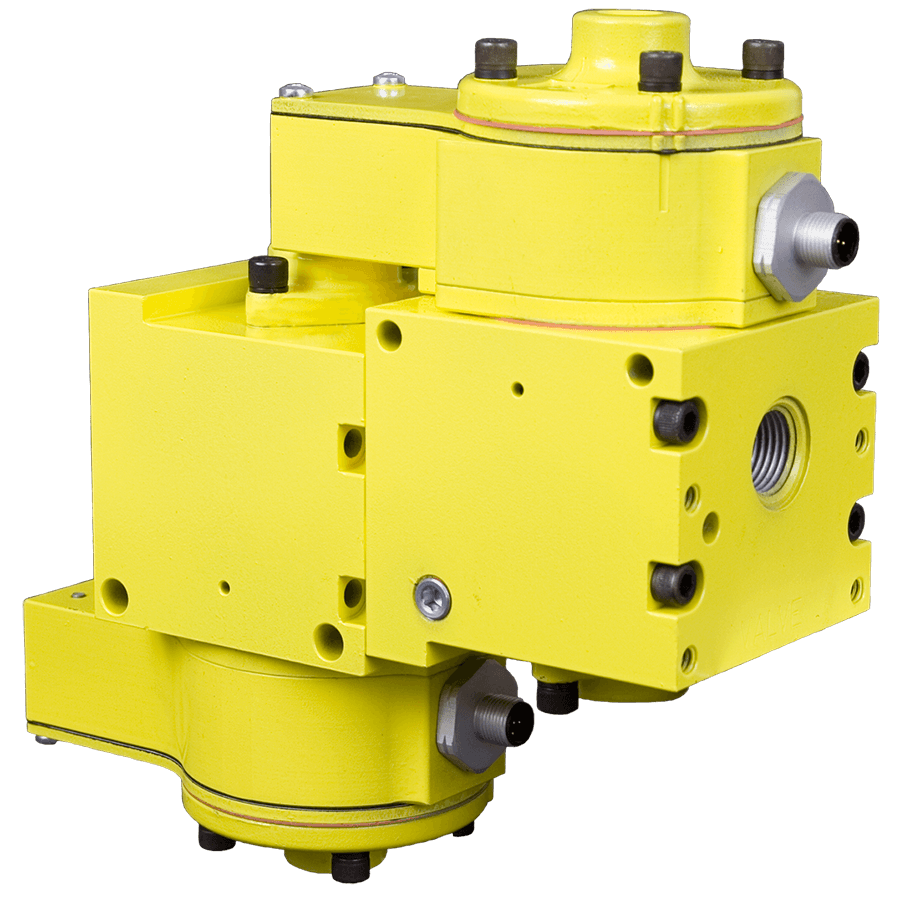

SV27NC115405ASAA ROSS Controls Electronic Components

Product Details

• Weight
  4.0 lbs (1.81 kg)
• Cv (In-Out)
  4.5
• Voltage
  Air Piloted
• Port Size (Outlet)
  1/2"
• Port Thread
  NPT
• Port Size (Inlet)
  1/2"
• Solenoid Connector
  Air Piloted
• Control Type
  Pressure Controlled
• Category
  Single PO Check
• Flow Media
  Filtered Air
• Performance Level
  CAT 2, PL c
• Media Temperature Range
  40 to 175 F (4 to 80 C)
• Mounting
  Inline
• Trapped Pressure Relief
  Without
• Port Type (Inlet)
  Threaded Female
• Port Type (Outlet)
  Threaded Female
• Ambient Temperature Range
  40 to 120 F (4 to 50 C)
• Feedback Type
  With Position Switch
• Inlet Pressure Range
  40 to 150 psig (2.8 to 10 bar)
• Valve Function
  2/2
Switch Connector
M12
