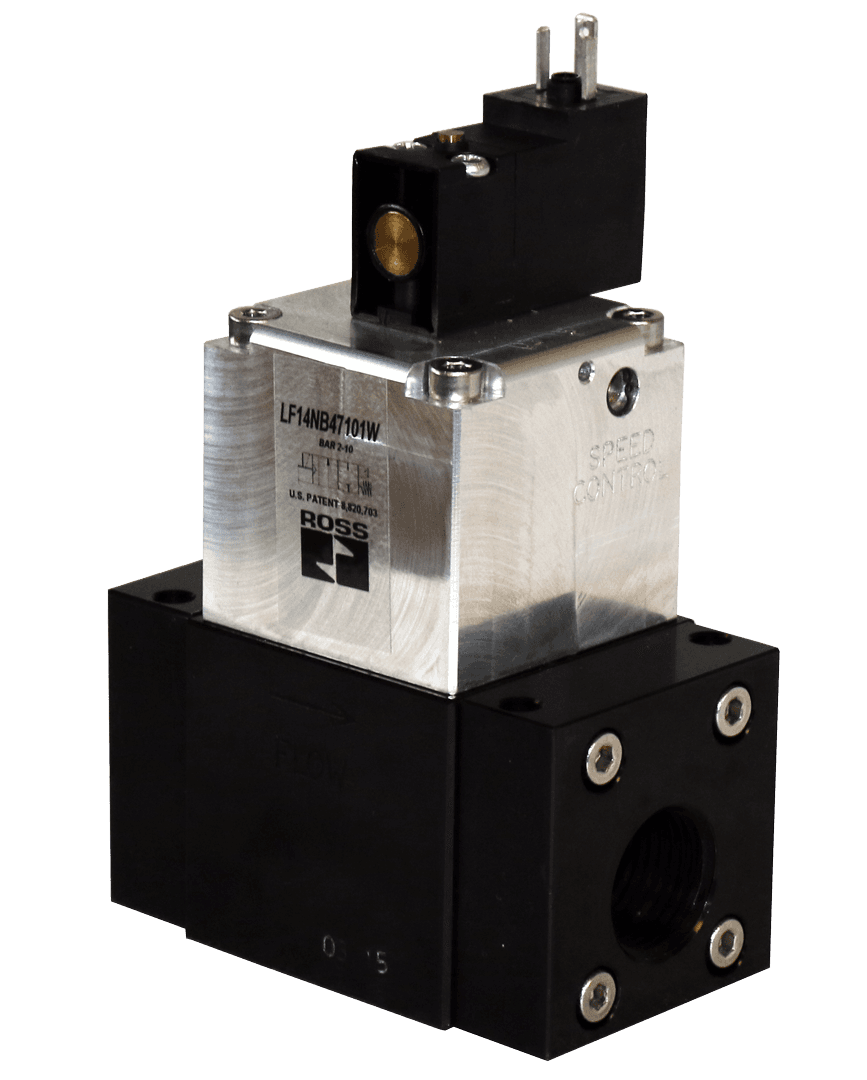

LX18DB87501W ROSS Controls Electronic Components
Part#:LX18DB87501W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description
LX Series 2/2 Solenoid Valve, Normally Closed, Port (In) G1-1/2", Port (Out) G1-1/2", 24 VDC
Product Details
- Valve Type Directional Control
- Ambient Temperature (Celsius) 4 to 50
- Pilot Supply Minimum equal to or greater than inlet pressure
- Weight (kg) 4.2
- Duty Rating Continuous Duty
- Valve Body Material Cast Aluminum
- Avg Cv 36.1
- Mounting Base Mount
- Power Consumption 5.8 watts nominal, 6.5 watts maximum
- Series LX
- Outlet Pipe Size 1-1/2"
- Application Vacuum, Leak Tight
- Media Temperature (Celsius) 4 to 80
- Function 2/2 Single Solenoid
- Width 3.75 in (95.3 mm)
- Default Position Normally Closed
- Operating Pressure (bar) vacuum to 10
- Poppet/Spool Material Acetal & Stainless Steel
- Height (mm 212
- Pilot Type External
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Seal Material Buna-N
- Width (mm) 95.3
- Return Air
- Media Temperature 40 to 175 F (4 to 80 C)
- Length (mm 139.7
- Height 8.35 in (212.0 mm)
- Thread Type G
- Voltage 24 VDC
- Actuation Electrical
- Inlet Pipe Size 1-1/2"
- Construction Poppet
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Manual Override Non-locking
- Weight 9.3 lb (4.2 kg)
- Connection EN 175301-803 Form A
- Fluid Media Filtered Air
- Length 5.50 in (139.7 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LX18DB87501W on Applied Automation is $678.75. Order now.
