LX16NB65501 ROSS Controls Electronic Components
Part#:LX16NB65501
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

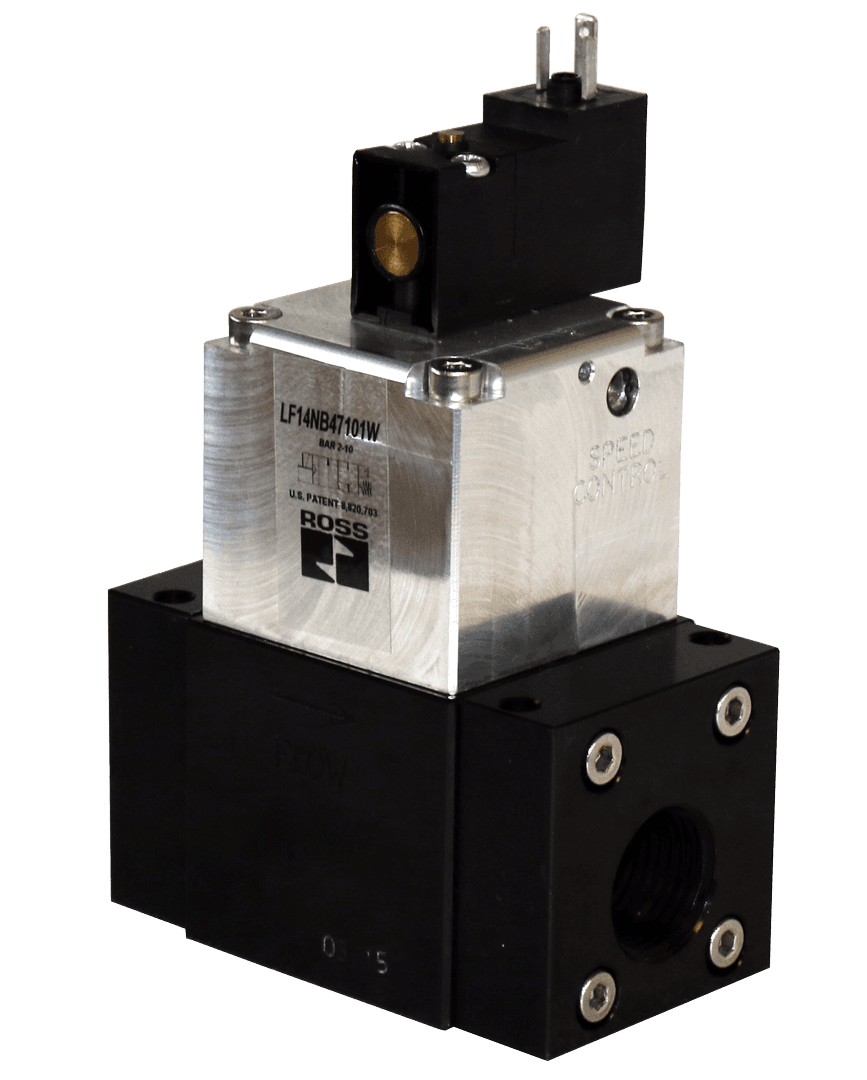

LX Series 2/2 Air Pilot Valve, Normally Closed, Port (In) 1" NPT, Port (Out) 1"NPT
Product Details
- Default Position Normally Closed
- Fluid Media Filtered Air
- Length (mm 104.7
- Height (mm 143.6
- Valve Type Directional Control
- Operating Pressure (bar) vacuum to 10
- Thread Type NPT
- Construction Poppet
- Media Temperature 40 to 175 F (4 to 80 C)
- Series LX
- Width (mm) 63.5
- Pilot Type External
- Duty Rating Continuous Duty
- Weight 3.5 lb (1.6 kg)
- Actuation Pneumatic
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Poppet/Spool Material Acetal & Stainless Steel
- Length 4.12 in (104.7 mm)
- Return Air
- Pilot Supply Minimum equal to or greater than inlet pressure
- Inlet Pipe Size 1"
- Width 2.5 in (63.5 mm)
- Function 2/2 Single Pilot
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Outlet Pipe Size 1"
- Application Vacuum, Leak Tight
- Ambient Temperature (Celsius) 4 to 50
- Valve Body Material Cast Aluminum
- Height 5.65 in (143.6 mm)
- Manual Override Locking
- Seal Material Buna-N
- Mounting Base Mount
- Media Temperature (Celsius) 4 to 80
- Weight (kg) 1.6
- Avg Cv 12.2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LX16NB65501 on Applied Automation is $324.50. Order now.
