LX13DB35501 ROSS Controls Electronic Components
Part#:LX13DB35501
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

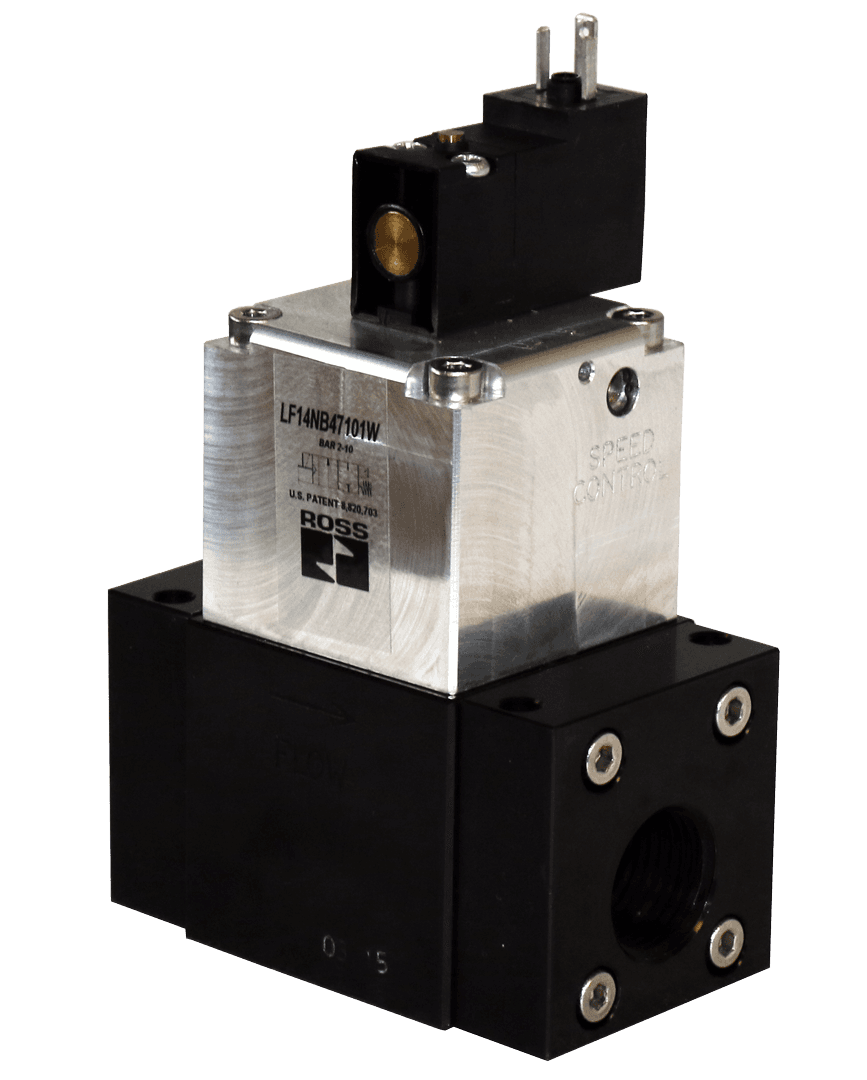

LX Series 2/2 Air Pilot Valve, Normally Closed, Port (In) G3/8", Port (Out) G3/8"
Product Details
- Default Position Normally Closed
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Poppet/Spool Material Acetal & Stainless Steel
- Weight 1.5 lb (0.7 kg)
- Construction Poppet
- Operating Pressure (bar) vacuum to 10
- Manual Override Non-locking
- Height 4.09 in (103.9 mm)
- Return Air
- Valve Body Material Cast Aluminum
- Length 3.12 in (79.3 mm)
- Actuation Pneumatic
- Media Temperature (Celsius) 4 to 80
- Weight (kg) 0.7
- Application Vacuum, Leak Tight
- Ambient Temperature (Celsius) 4 to 50
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Length (mm 79.3
- Thread Type G
- Media Temperature 40 to 175 F (4 to 80 C)
- Outlet Pipe Size 3/8"
- Pilot Type External
- Series LX
- Width 1.87 in (47.6 mm)
- Mounting Base Mount
- Pilot Supply Minimum equal to or greater than inlet pressure
- Avg Cv 3.6
- Function 2/2 Single Pilot
- Duty Rating Continuous Duty
- Inlet Pipe Size 3/8"
- Width (mm) 47.6
- Valve Type Directional Control
- Fluid Media Filtered Air
- Seal Material Buna-N
- Height (mm 103.9
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LX13DB35501 on Applied Automation is $218.25. Order now.
