LF24NB47101W ROSS Controls Electronic Components
Part#:LF24NB47101W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

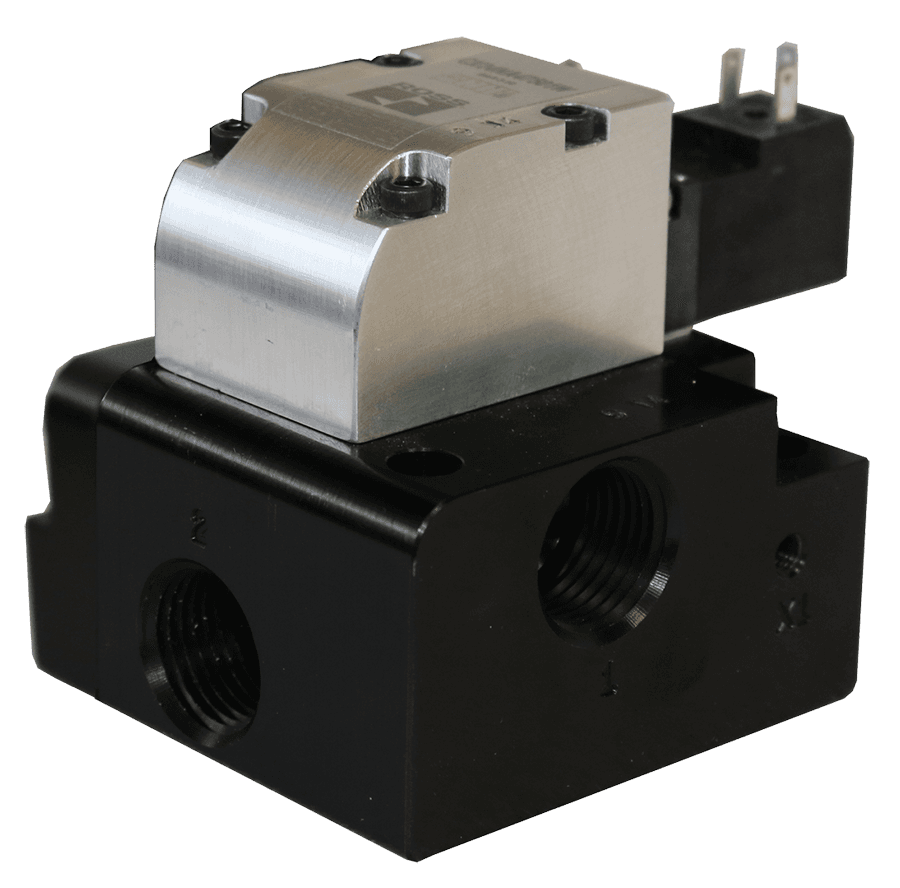

LF Series 2/2 Solenoid Valve, Normally Open, Port (In) 1/2" NPT, Port (Out) 1/2" NPT, 24 VDC
Product Details
- Valve Type Directional Control
- Media Temperature (Celsius) 4 to 80
- Inlet Pipe Size 1/2"
- Weight 1.5 lb (0.7 kg)
- Actuation Electrical
- Duty Rating Continuous Duty
- Seal Material Buna-N
- Avg Cv 3.6
- Manual Override Locking
- Media Temperature 40 to 175 F (4 to 80 C)
- Power Consumption 1.5 watts
- Function 2/2 Single Solenoid
- Ambient Temperature (Celsius) 4 to 50
- Default Position Normally Open
- Height (mm 121.3
- Return Spring Assisted Air
- Fluid Media Filtered Air
- Connection EN 175301-803 Form C
- Pilot Type Internal/External
- Pilot Supply Minimum equal to or greater than inlet pressure
- Thread Type NPT
- Width (mm) 47.6
- Application General
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Poppet/Spool Material Acetal & Stainless Steel
- Length 3.12 in (79.3 mm)
- Width 1.87 in (47.6 mm)
- Construction Poppet
- Operating Pressure (bar) vacuum to 10
- Series LF
- Weight (kg) 0.7
- Mounting Base Mounted
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Outlet Pipe Size 1/2"
- Height 4.78 in (121.3 mm)
- Voltage 24 VDC
- Valve Body Material Cast Aluminum
- Length (mm 79.3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LF24NB47101W on Applied Automation is $233.00. Order now.
