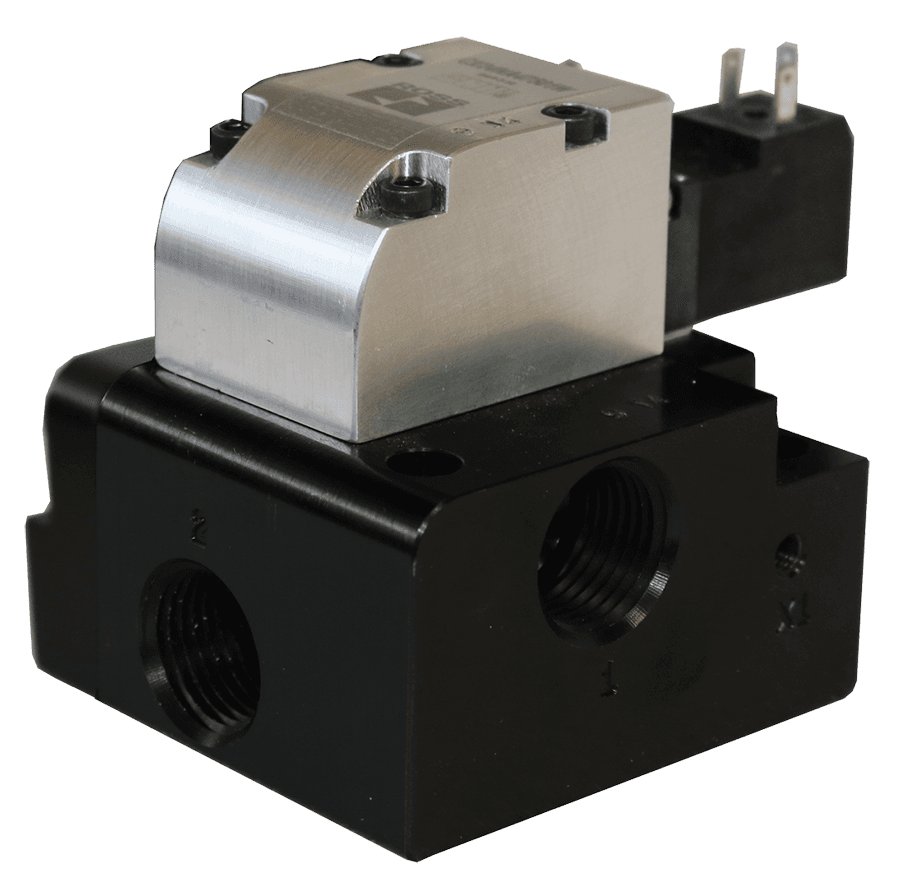

LF13DB37101W ROSS Controls Electronic Components

Product Details

• Construction
  Poppet
• Pilot Type
  Internal/External
• Operating Pressure (bar)
  vacuum to 10
• Weight (kg)
  0.7
• Application
  General
• Fluid Media
  Filtered Air
• Series
  LF
• Width (mm)
  47.6
• Function
  2/2 Single Solenoid
• Media Temperature (Celsius)
  4 to 80
• Seal Material
  Buna-N
• Return
  Spring Assisted Air
• Duty Rating
  Continuous Duty
• Connection
  EN 175301-803 Form C
• Width
  1.87 in (47.6 mm)
• Default Position
  Normally Closed
• Media Temperature
  40 to 175 F (4 to 80 C)
• Poppet/Spool Material
  Acetal & Stainless Steel
• Avg Cv
  3.6
• Manual Override
  Locking
Pilot Supply Minimum
equal to or greater than inlet pressure
Length (mm
79.3
Valve Type
Directional Control
Voltage
24 VDC
Valve Body Material
Cast Aluminum
Length
3.12 in (79.3 mm)
Thread Type
G
Ambient Temperature
40 to 120 F (4 to 50 C)
Inlet Pipe Size
3/8"
Height (mm
121.3
Mounting
Base Mounted
Ambient Temperature (Celsius)
4 to 50
Outlet Pipe Size
3/8"
Height
4.78 in (121.3 mm)
Actuation
Electrical
Operating Pressure
Vacuum to 145 psig (vacuum to 10 bar)
Power Consumption
1.5 watts
Weight
1.5 lb (0.7 kg)
