LF10DB07101W ROSS Controls Electronic Components
Part#:LF10DB07101W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

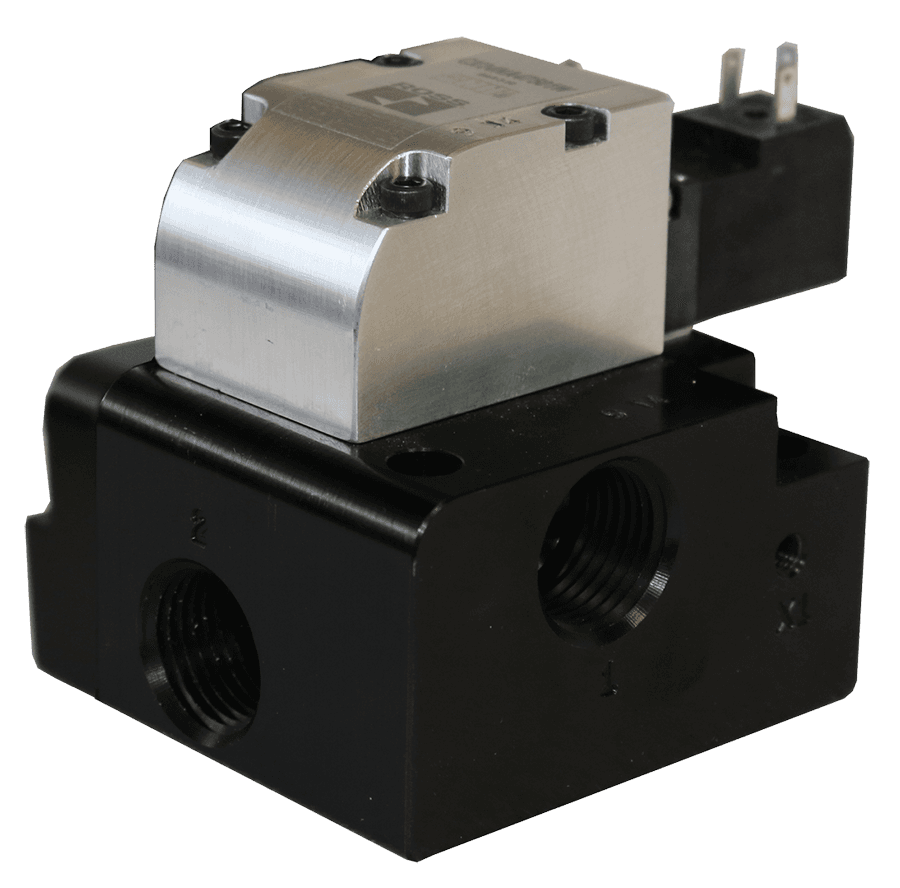

LF Series 2/2 Solenoid Valve, Normally Closed, Port (In) G2-1/2", Port (Out) G2-1/2", 24 VDC
Product Details
- Application General
- Manual Override Locking
- Length (mm 171.5
- Weight (kg) 8.8
- Actuation Electrical
- Ambient Temperature (Celsius) 4 to 50
- Operating Pressure (bar) vacuum to 10
- Weight 19.3 lb (8.8 kg)
- Thread Type G
- Construction Poppet
- Media Temperature 40 to 175 F (4 to 80 C)
- Seal Material Buna-N
- Default Position Normally Closed
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Length 6.75 in (171.5 mm)
- Width (mm) 127
- Return Spring Assisted Air
- Power Consumption 5.8 watts nominal, 6.5 watts maximum
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Height (mm 272.9
- Inlet Pipe Size 2-1/2"
- Mounting Base Mounted
- Pilot Supply Minimum equal to or greater than inlet pressure
- Width 5.0 in (127.0 mm)
- Valve Type Directional Control
- Pilot Type Internal/External
- Fluid Media Filtered Air
- Avg Cv 62.7
- Outlet Pipe Size 2-1/2"
- Duty Rating Continuous Duty
- Valve Body Material Cast Aluminum
- Height 10.74 in (272.9 mm)
- Function 2/2 Single Solenoid
- Voltage 24 VDC
- Poppet/Spool Material Acetal & Stainless Steel
- Connection EN 175301-803 Form A
- Media Temperature (Celsius) 4 to 80
- Series LF
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LF10DB07101W on Applied Automation is $1,348.75. Order now.
