D2776B7001Z ROSS Controls Electronic Components
Part#:D2776B7001Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

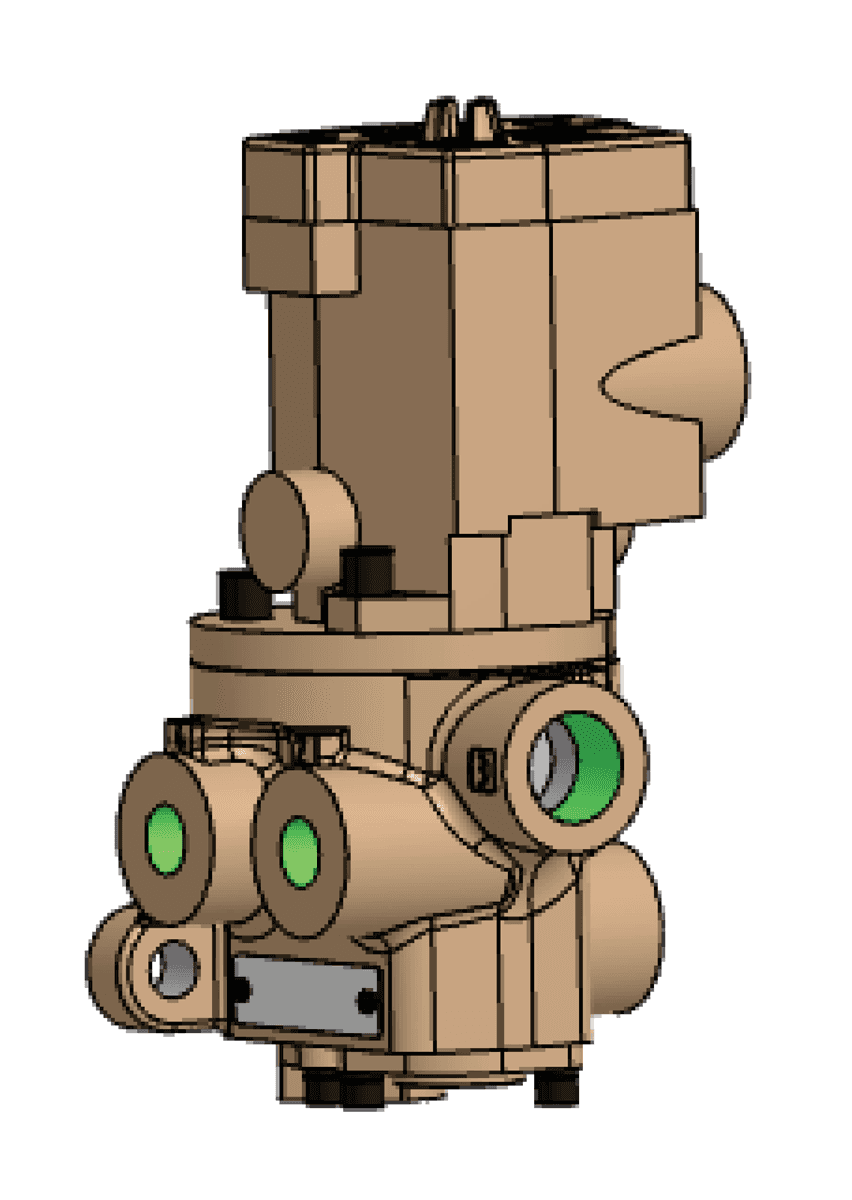

27 Series, 4/2 Single Solenoid Pilot Valve, Normally Open, Spring Return, Ports (In-Out) G1-1/4", Ports (Exhaust) G1-1/2", 110/120 VAC
Product Details
- Duty Rating Continuous Duty
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Thread Type G
- Size 1-1/4"
- Mounting Inline
- Valve Body Material Cast Aluminum
- Ambient Temperature (Celsius) 4 to 50
- Function 4/2 Single Solenoid
- Weight (kg) 5.1
- Connection Hardwired
- Poppet/Spool Material Acetal, Stainless Steel
- Voltage 110/120 VAC
- Height (mm) 262
- Manual Override Non-locking
- Fluid Media Filtered Air
- Power Consumption 190 VA inrush, 40 VA holding on 50 or 60 Hz
- Width 6.49 in (165 mm)
- Weight 11.3 lb (5.1 kg)
- Construction Poppet
- Media Temperature (Celsius) 4 to 80
- Cv (4-3) 27
- Valve Type Directional Control
- Pilot Supply Minimum equal to or greater than inlet pressure
- Pilot Type Internal/External
- Inlet Pipe Size 1-1/4"
- Application General
- Operating Pressure (bar) 1 to 10
- Outlet Pipe Size 1-1/4"
- Cv (2-3) 27
- Return Spring
- Actuation Electrical
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Height 10.32 in (262 mm)
- Series 27
- Seal Material Buna-N
- Exhaust Pipe Size 1-1/2"
- Width (mm) 165
- Media Temperature 40 to 175 F (4 to 80 C)
- Default Position Normally Open
- Cv (1-4) 21
- Cv (1-2) 21
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D2776B7001Z on Applied Automation is $1,127.00. Order now.
