D2776B6011W ROSS Controls Electronic Components
Part#:D2776B6011W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

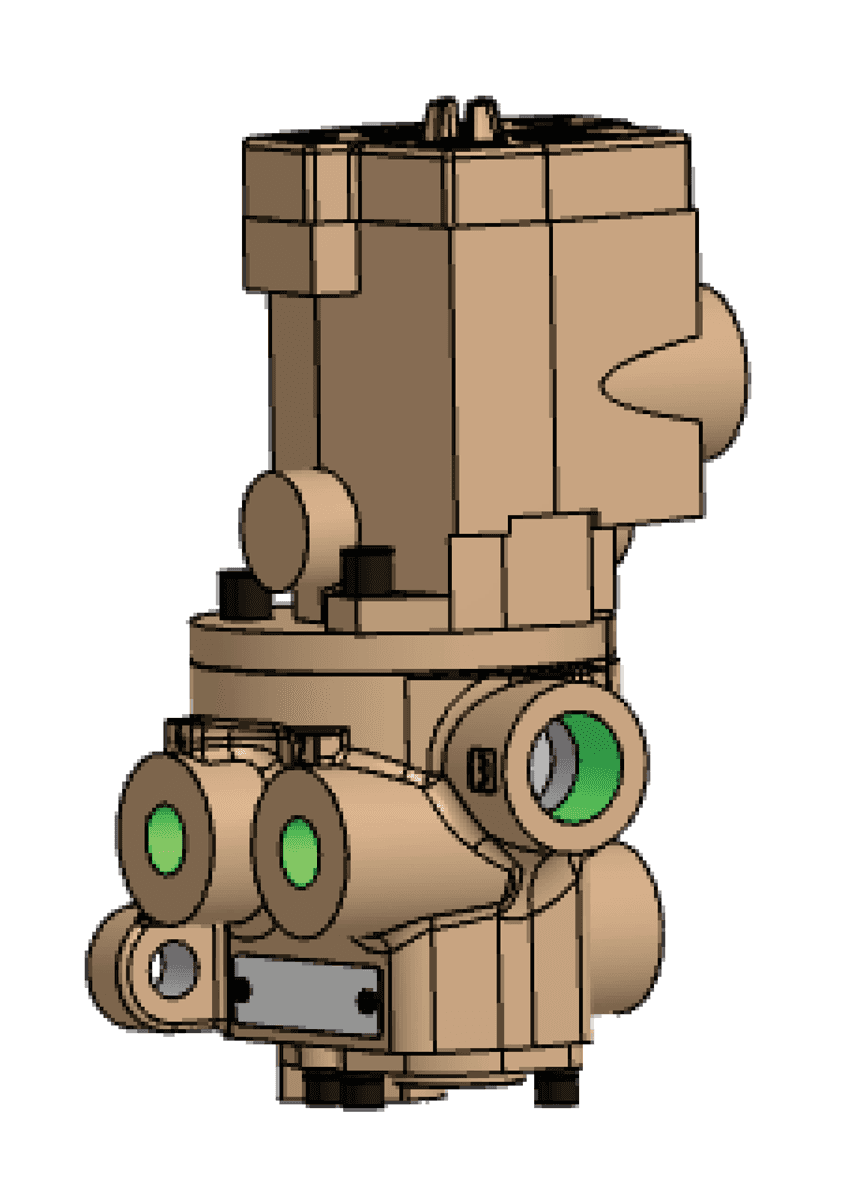

27 Series, 4/2 Single Solenoid Pilot Valve, Normally Open, Spring Return, Ports (In-Out) G1", Ports (Exhaust) G1", 24 VDC
Product Details
- Valve Type Directional Control
- Media Temperature 40 to 175 F (4 to 80 C)
- Outlet Pipe Size 1"
- Length 5.15 in (131 mm)
- Cv (2-3) 10
- Application General
- Fluid Media Filtered Air
- Seal Material Buna-N
- Cv (4-3) 10
- Mounting Inline
- Power Consumption 20 watts
- Default Position Normally Open
- Length (mm) 131
- Weight 5.3 lb (2.4 kg)
- Voltage 24 VDC
- Media Temperature (Celsius) 4 to 80
- Thread Type G
- Ambient Temperature (Celsius) 4 to 50
- Width (mm) 118
- Return Spring
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Exhaust Pipe Size 1"
- Function 4/2 Single Solenoid
- Cv (1-2) 7.8
- Manual Override Non-locking
- Operating Pressure (bar) 1 to 10
- Size 3/4"
- Width 4.63 in (118 mm)
- Construction Poppet
- Poppet/Spool Material Acetal, Stainless Steel
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Height 8.94 in (227 mm)
- Connection Hardwired
- Valve Body Material Cast Aluminum
- Inlet Pipe Size 1"
- Cv (1-4) 7.8
- Series 27
- Pilot Supply Minimum equal to or greater than inlet pressure
- Actuation Electrical
- Height (mm) 227
- Duty Rating Continuous Duty
- Pilot Type Internal/External
- Weight (kg) 2.4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
