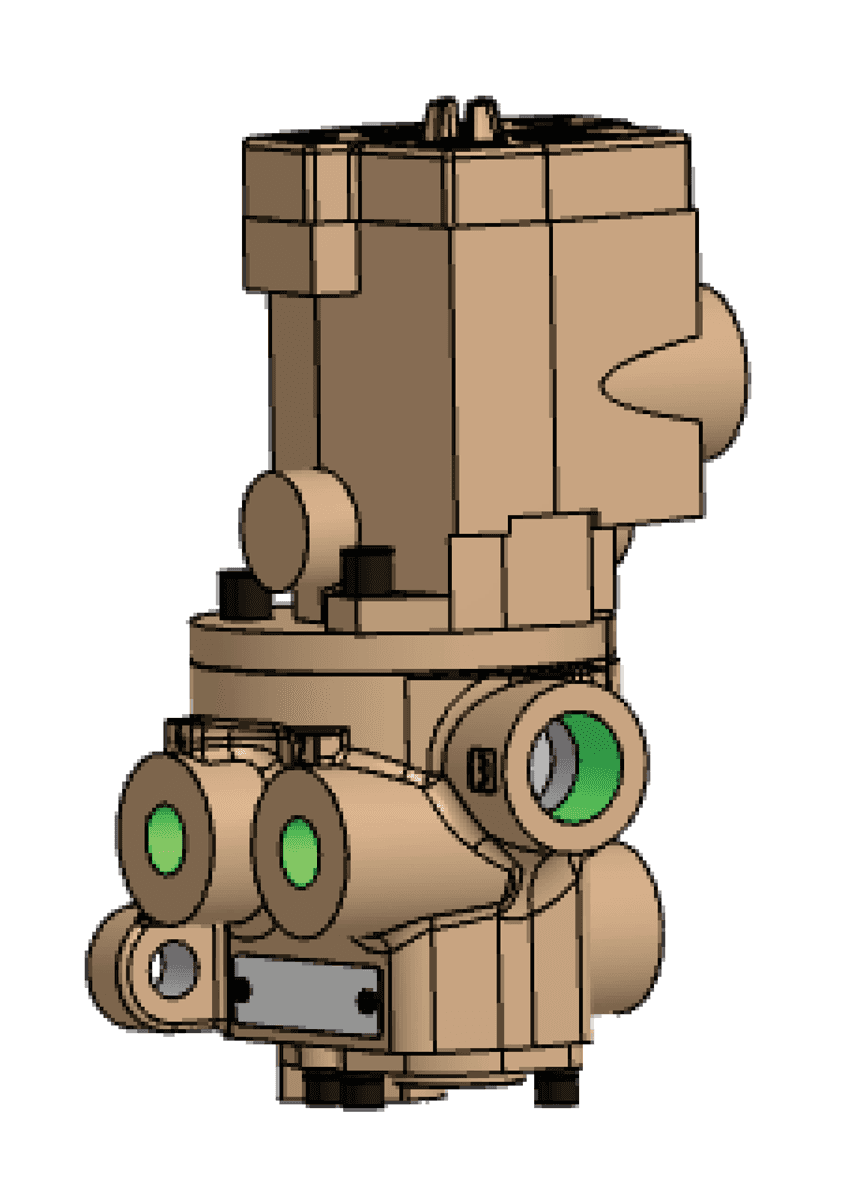

D2776B2001W ROSS Controls Electronic Components
Part#:D2776B2001W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description
27 Series, 4/2 Single Solenoid Pilot Valve, Normally Open, Detented, Ports (In-Out) G1/4", Ports (Exhaust) G1/2", 24 VDC
Product Details
- Application General
- Size 3/8"
- Pilot Supply Minimum equal to or greater than inlet pressure
- Default Position Normally Open
- Cv (1-2) 2.1
- Construction Poppet
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Width 3.91 in (99 mm)
- Weight (kg) 1.4
- Exhaust Pipe Size 1/2"
- Cv (4-3) 2.9
- Poppet/Spool Material Acetal, Stainless Steel
- Width (mm) 99
- Mounting Inline
- Cv (1-4) 2.1
- Operating Pressure (bar) 1 to 10
- Return Detented
- Length 3.75 in (95 mm)
- Valve Type Directional Control
- Power Consumption 20 watts
- Thread Type G
- Length (mm) 95
- Outlet Pipe Size 1/4"
- Voltage 24 VDC
- Valve Body Material Cast Aluminum
- Cv (2-3) 2.9
- Manual Override Non-locking
- Media Temperature (Celsius) 4 to 80
- Seal Material Buna-N
- Height (mm) 181
- Inlet Pipe Size 1/4"
- Duty Rating Continuous Duty
- Actuation Electrical
- Height 7.14 in (181 mm)
- Connection Hardwired
- Media Temperature 40 to 175 F (4 to 80 C)
- Pilot Type Internal/External
- Weight 3.0 lb (1.4 kg)
- Series 27
- Fluid Media Filtered Air
- Function 4/2 Single Solenoid
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D2776B2001W on Applied Automation is $357.75. Order now.
