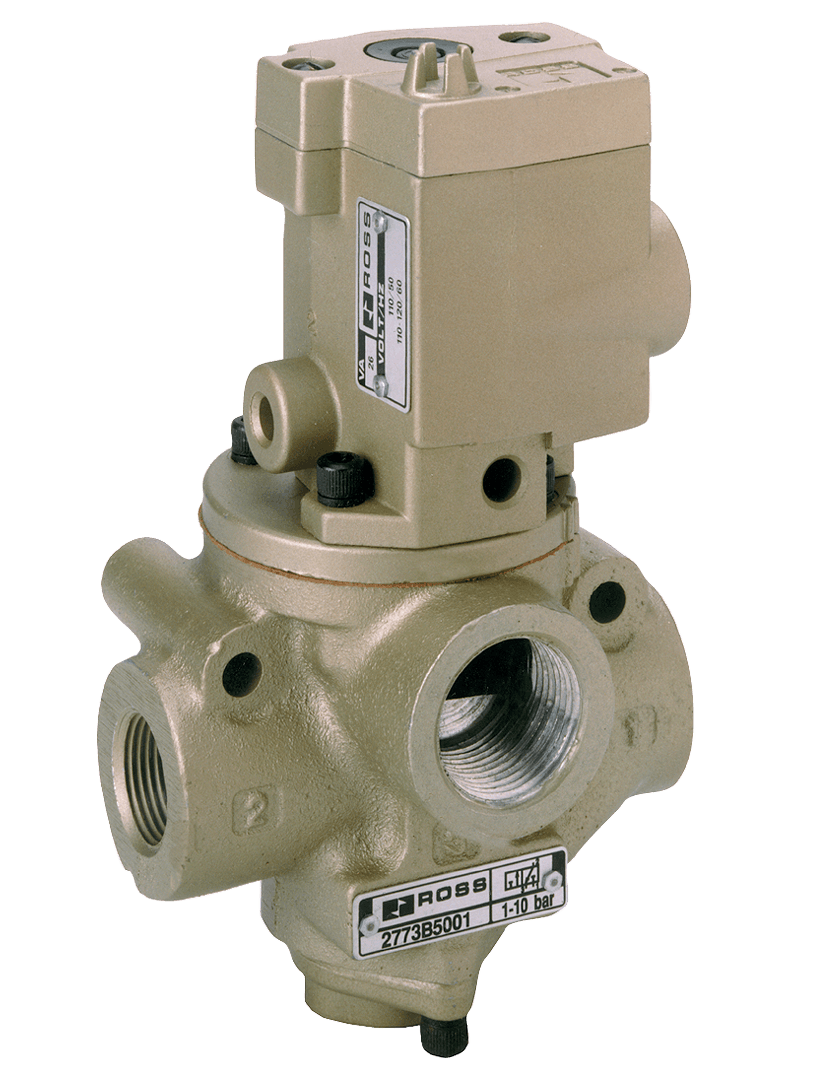

D2773B5001Z ROSS Controls Electronic Components

Product Details

• Duty Rating
  Continuous Duty
• Seal Material
  Buna-N
• Function
  3/2 Single Solenoid
• Connection
  Hardwired
• Pilot Supply Minimum
  equal to or greater than inlet pressure
• Power Consumption
  190 VA inrush, 40 VA holding on 50 or 60 Hz
• Weight (kg)
  1.5
• Valve Type
  Directional Control
• Media Temperature
  40 to 175 F (4 to 80 C)
• Size
  3/4"
• Outlet Pipe Size
  3/4"
• Return
  Spring
• Media Temperature (Celsius)
  4 to 80
• Exhaust Pipe Size
  1"
• Width
  3.59 in (91 mm)
• Construction
  Poppet
• Operating Pressure (bar)
  1 to 10
• Ambient Temperature
  40 to 120 F (4 to 50 C)
• Width (mm)
  91
• Mounting
  Inline
Voltage
110/120 VAC
Cv (1-2)
7.7
Default Position
Normally Closed
Fluid Media
Filtered Air
Actuation
Electrical
Inlet Pipe Size
3/4"
Length
4.46 in (116 mm)
Application
General
Thread Type
G
Length (mm)
116
Height
7.89 in (200 mm)
Manual Override
Non-locking
Valve Body Material
Cast Aluminum
Pilot Type
Internal/External
Weight
3.3 lb (1.5 kg)
Height (mm)
200
Series
27
Operating Pressure
15 to 150 psig (1 to 10 bar)
Poppet/Spool Material
Acetal, Stainless Steel
Ambient Temperature (Celsius)
4 to 50
Cv (1-4)
11
