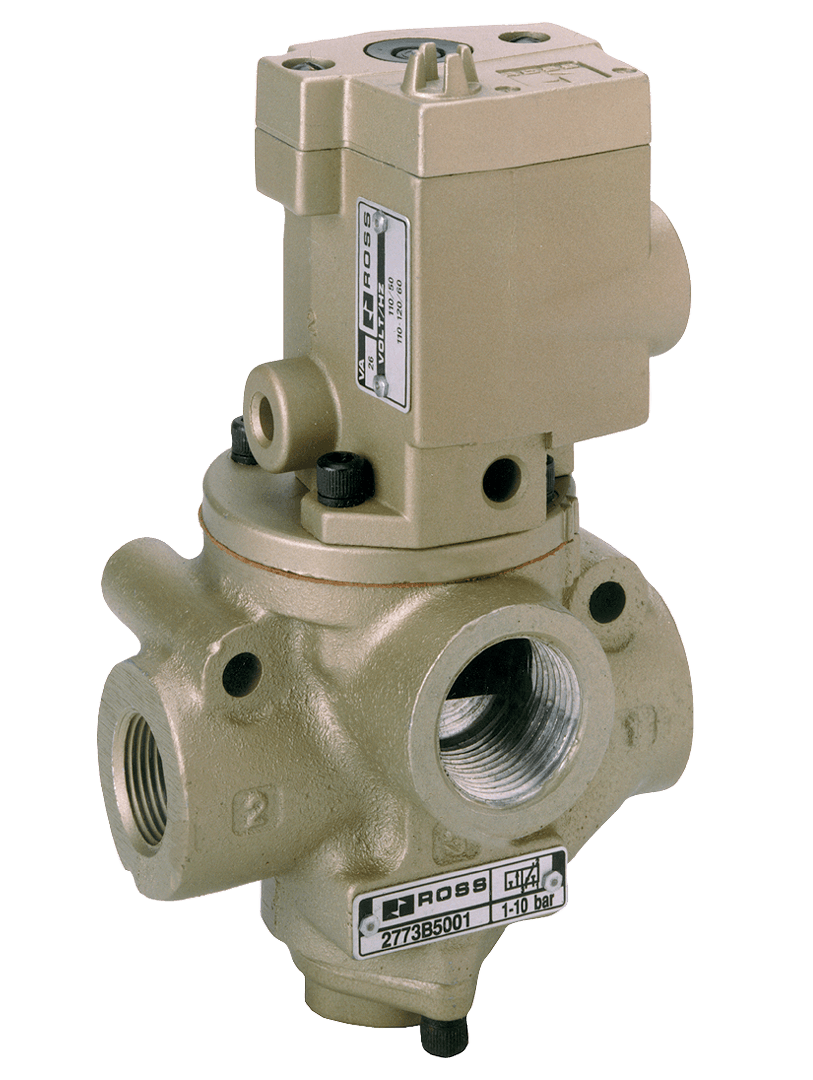

D2771B6001Z ROSS Controls Electronic Components

Product Details

• Default Position
  Normally Closed
• Operating Pressure (bar)
  1 to 10
• Pilot Type
  Internal/External
• Outlet Pipe Size
  1"
• Manual Override
  Non-locking
• Actuation
  Electrical
• Function
  2/2 Single Solenoid
• Weight (kg)
  3.2
• Series
  27
• Pilot Supply Minimum
  equal to or greater than inlet pressure
• Voltage
  110/120 VAC
• Weight
  7.0 lb (3.2 kg)
• Construction
  Poppet
• Ambient Temperature
  40 to 120 F (4 to 50 C)
• Avg Cv
  24
• Connection
  Hardwired
• Media Temperature (Celsius)
  4 to 80
• Duty Rating
  Continuous Duty
• Length (mm)
  165
• Mounting
  Inline
Valve Body Material
Cast Aluminum
Inlet Pipe Size
1"
Height
10.32 in (262 mm)
Application
General
Poppet/Spool Material
Acetal, Stainless Steel
Width (mm)
104
Length
6.49 in (165 mm)
Return
Spring
Media Temperature
40 to 175 F (4 to 80 C)
Thread Type
G
Ambient Temperature (Celsius)
4 to 50
Valve Type
Directional Control
Seal Material
Buna-N
Power Consumption
190 VA inrush, 40 VA holding on 50 or 60 Hz
Width
4.09 in (104 mm)
Operating Pressure
15 to 150 psig (1 to 10 bar)
Fluid Media
Filtered Air
Size
1-1/4"
Height (mm)
262
