CX44NB47501W ROSS Controls Electronic Components
Part#:CX44NB47501W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

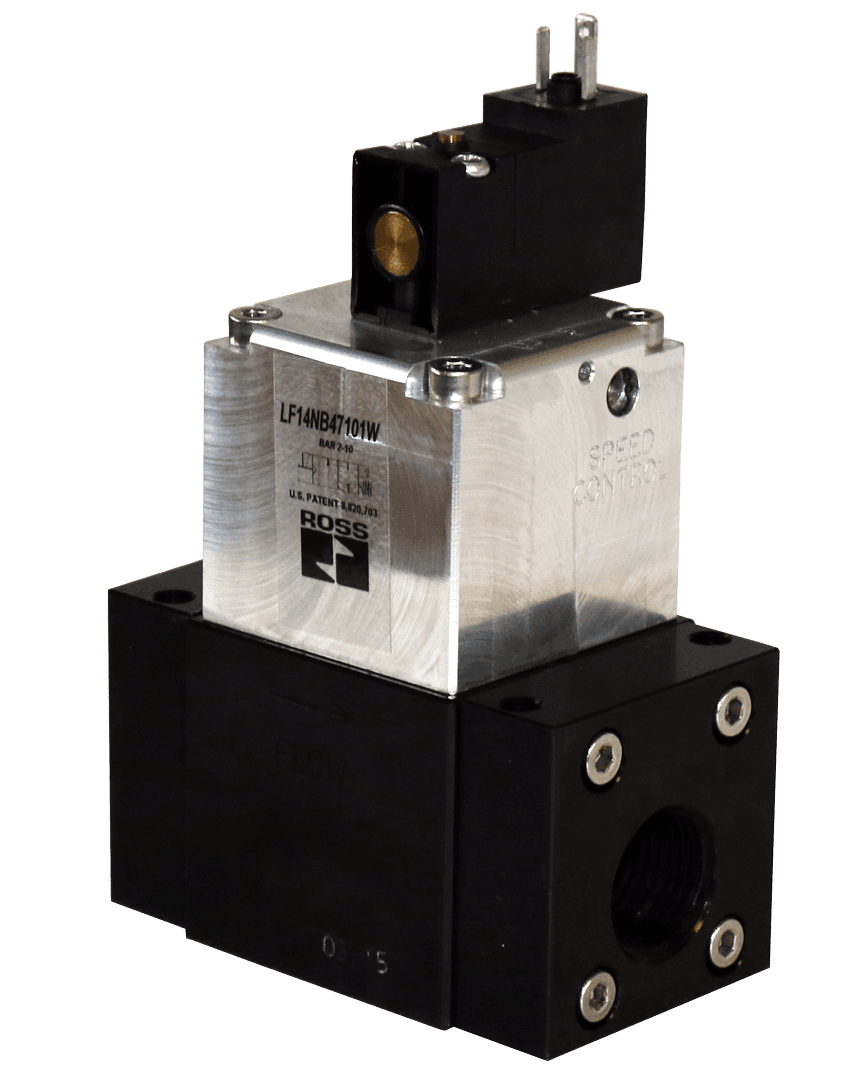

CX Series 3/2 Solenoid Valve, Normally Open, Port (In) 1/2" NPT, Port (Out) 1/2"NPT, 24 VDC
Product Details
- Return Air
- Operating Pressure (bar) vacuum to 10
- Thread Type NPT
- Weight 1.8 lb (0.8 kg)
- Voltage 24 VDC
- Fluid Media Filtered Air
- Default Position Normally Open
- Height 2.85 in (72.4 mm)
- Valve Type Directional Control
- Valve Body Material Cast Aluminum
- Function 3/2 Single Solenoid
- Application Vacuum, Leak Tight
- Media Temperature 40 to 175 F (4 to 80 C)
- Actuation Electrical
- Length (mm 71.8
- Duty Rating Continuous Duty
- Poppet/Spool Material Acetal & Stainless Steel
- Power Consumption 1.5 watts
- Outlet Pipe Size 1/2"
- Mounting Base Mount
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Seal Material Buna-N
- Length 2.83 in (71.8 mm)
- Pilot Type External
- Ambient Temperature (Celsius) 4 to 50
- Avg Cv 3.5
- Weight (kg) 0.8
- Construction Poppet
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Manual Override Non-locking
- Height (mm 72.4
- Series CX
- Pilot Supply Minimum equal to or greater than inlet pressure
- Inlet Pipe Size 1/2"
- Width (mm) 116.3
- Exhaust Pipe Size 1/2"
- Media Temperature (Celsius) 4 to 80
- Connection EN 175301-803 Form C
- Width 4.58 in (116.3 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CX44NB47501W on Applied Automation is $241.00. Order now.
