CX18NB77501Z ROSS Controls Electronic Components
Part#:CX18NB77501Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

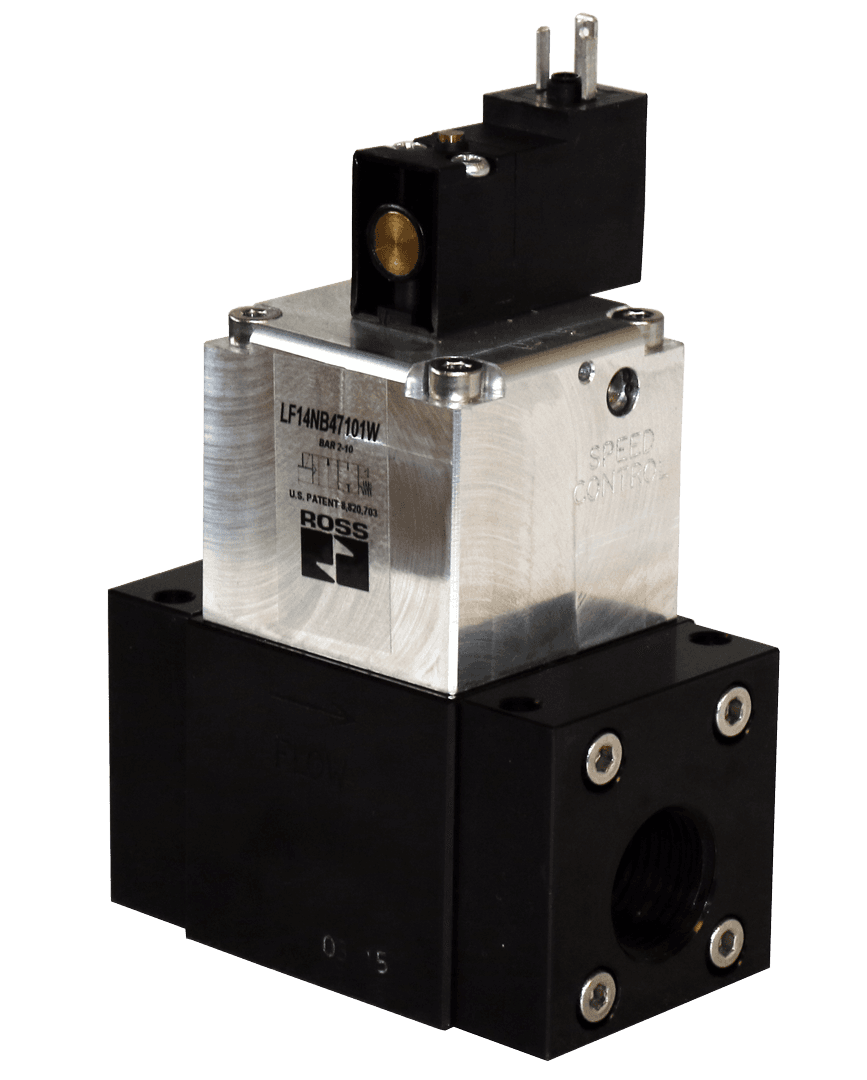

CX Series 2/2 Solenoid Valve, Normally Closed, Port (In) 1-1/2" NPT, Port (Out) 1-1/4"NPT, 110/120 VAC
Product Details
- Connection EN 175301-803 Form A
- Mounting Base Mount
- Series CX
- Return Air
- Valve Type Directional Control
- Power Consumption 5.8 watts nominal, 6.5 watts maximum
- Ambient Temperature (Celsius) 4 to 50
- Media Temperature (Celsius) 4 to 80
- Pilot Type External
- Duty Rating Continuous Duty
- Media Temperature 40 to 175 F (4 to 80 C)
- Fluid Media Filtered Air
- Valve Body Material Cast Aluminum
- Pilot Supply Minimum equal to or greater than inlet pressure
- Seal Material Buna-N
- Voltage 110/120 VAC
- Weight (kg) 4.6
- Application Vacuum, Leak Tight
- Default Position Normally Closed
- Construction Poppet
- Manual Override Locking
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Operating Pressure (bar) vacuum to 10
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Poppet/Spool Material Acetal & Stainless Steel
- Function 2/2 Single Solenoid
- Thread Type NPT
- Actuation Electrical
- Inlet Pipe Size 1-1/2"
- Avg Cv 44.9
- Length 5.0 in (127.0 mm)
- Length (mm 127
- Weight 10.0 lb (4.6 kg)
- Height 8.45 in (214.6 mm)
- Height (mm 214.6
- Width 5.65 in (143.4 mm)
- Outlet Pipe Size 1-1/4"
- Width (mm) 143.4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
