CP36NB57101W ROSS Controls Electronic Components
Part#:CP36NB57101W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

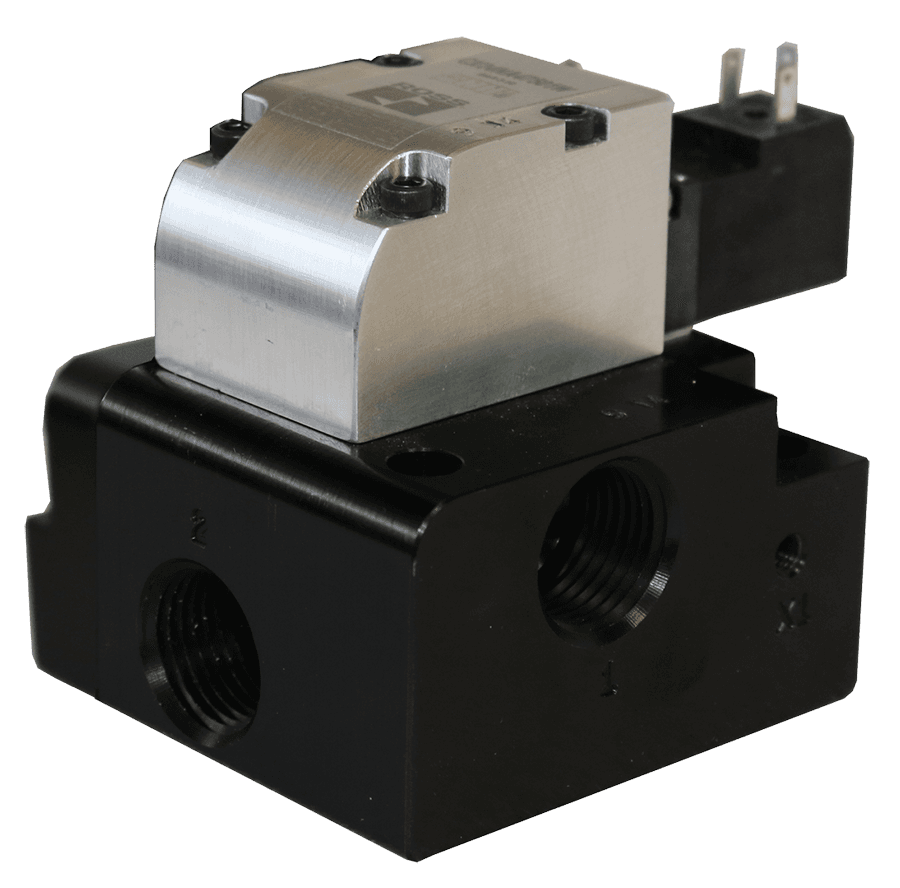

CP Series 3/2 Solenoid Valve, Normally Closed, Port (In) 1" NPT, Port (Out) 3/4" NPT, 24 VDC
Product Details
- Series CP
- Operating Pressure (bar) vacuum to 10
- Exhaust Pipe Size 1"
- Length 3.45 in (87.6 mm)
- Pilot Type Internal/External
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Manual Override Non-locking
- Height 6.19 in (157.3 mm)
- Default Position Normally Closed
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Seal Material Buna-N
- Weight (kg) 2.4
- Valve Type Directional Control
- Fluid Media Filtered Air
- Valve Body Material Cast Aluminum
- Width (mm) 127.1
- Mounting Base Mounted
- Media Temperature (Celsius) 4 to 80
- Connection EN 175301-803 Form C
- Length (mm 87.6
- Actuation Electrical
- Media Temperature 40 to 175 F (4 to 80 C)
- Power Consumption 1.5 watts
- Outlet Pipe Size 3/4"
- Return Spring Assisted Air
- Pilot Supply Minimum equal to or greater than inlet pressure
- Avg Cv 12.3
- Width 5.00 in (127.1 mm)
- Application General
- Duty Rating Continuous Duty
- Function 3/2 Single Solenoid
- Height (mm 157.3
- Voltage 24 VDC
- Poppet/Spool Material Acetal & Stainless Steel
- Inlet Pipe Size 1"
- Construction Poppet
- Ambient Temperature (Celsius) 4 to 50
- Thread Type NPT
- Weight 5.3 lb (2.4 kg)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CP36NB57101W on Applied Automation is $346.50. Order now.
