CP16NB67101Z ROSS Controls Electronic Components
Part#:CP16NB67101Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

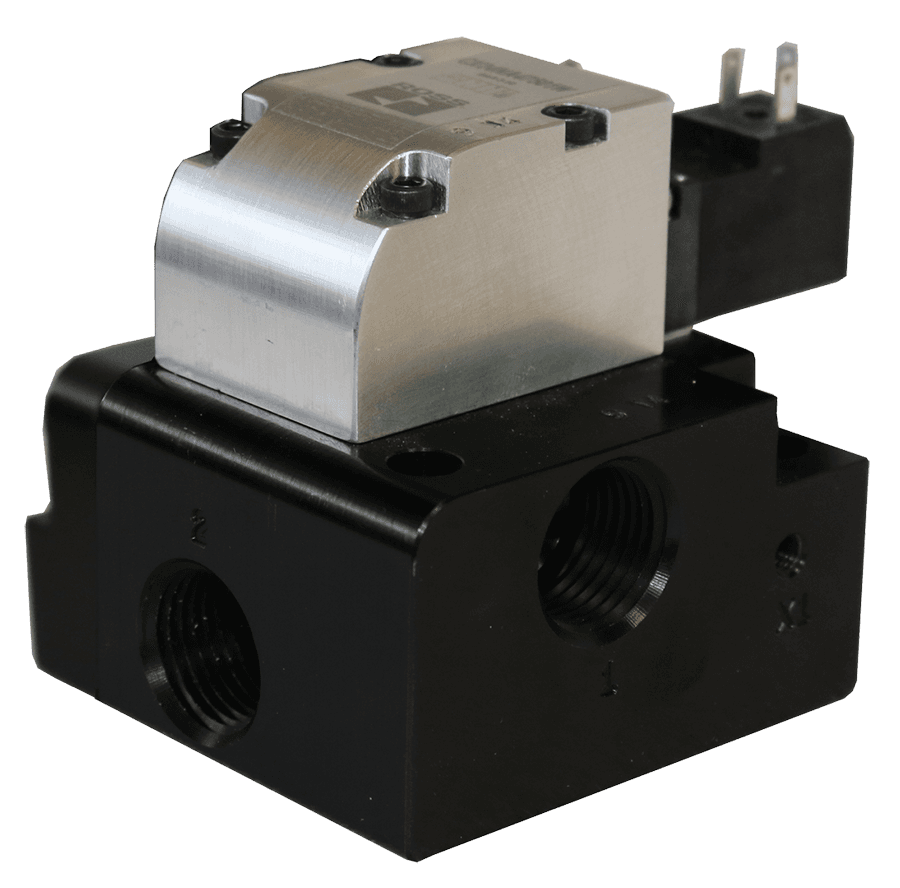

CP Series 2/2 Solenoid Valve, Normally Closed, Port (In) 1" NPT, Port (Out) 1" NPT, 110/120 VAC
Product Details
- Default Position Normally Closed
- Duty Rating Continuous Duty
- Avg Cv 12.3
- Outlet Pipe Size 1"
- Return Spring Assisted Air
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Poppet/Spool Material Acetal & Stainless Steel
- Mounting Base Mounted
- Pilot Supply Minimum equal to or greater than inlet pressure
- Voltage 110/120 VAC
- Length (mm 87.6
- Application General
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Power Consumption 50 Hz: 5.4 VA/60 Hz: 5.0 VA
- Width (mm) 105.8
- Ambient Temperature (Celsius) 4 to 50
- Valve Body Material Cast Aluminum
- Seal Material Buna-N
- Function 2/2 Single Solenoid
- Fluid Media Filtered Air
- Thread Type NPT
- Height (mm 142.9
- Valve Type Directional Control
- Operating Pressure (bar) vacuum to 10
- Inlet Pipe Size 1"
- Weight 3.5 lb (1.6 kg)
- Construction Poppet
- Pilot Type Internal/External
- Length 3.45 in (87.6 mm)
- Height 5.63 in (142.9 mm)
- Actuation Electrical
- Media Temperature 40 to 175 F (4 to 80 C)
- Connection EN 175301-803 Form C
- Weight (kg) 1.6
- Series CP
- Media Temperature (Celsius) 4 to 80
- Manual Override Non-locking
- Width 4.17 in (105.8 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CP16NB67101Z on Applied Automation is $301.25. Order now.
