CP14NB47101Z ROSS Controls Electronic Components
Part#:CP14NB47101Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

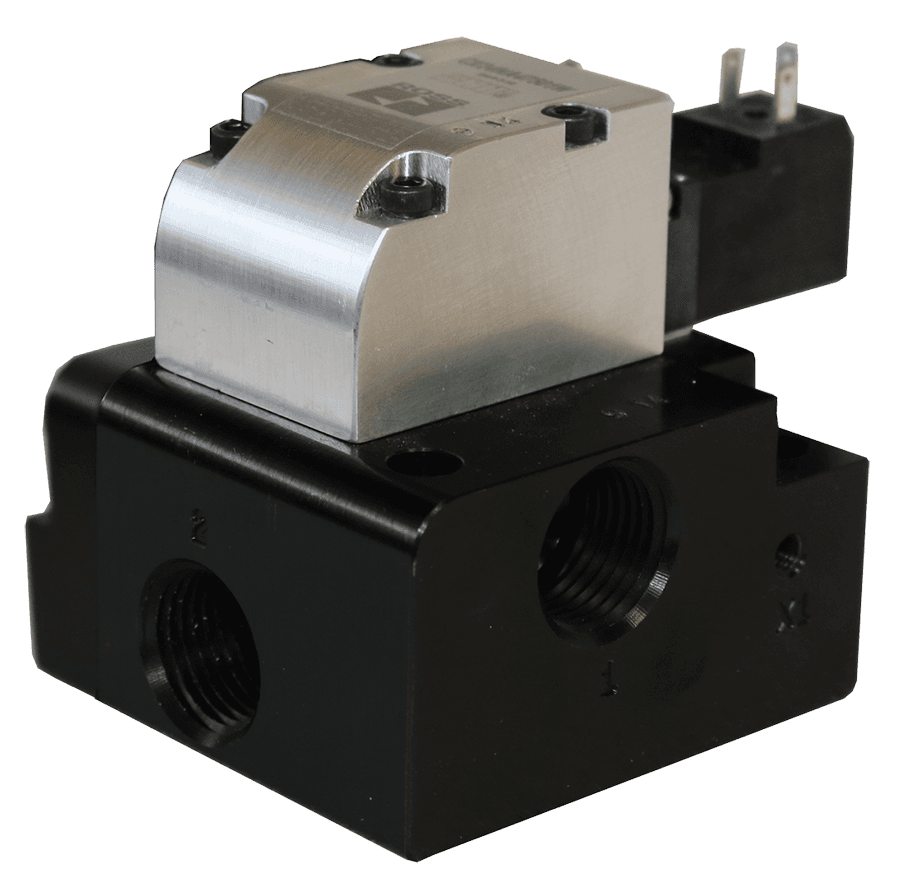

CP Series 2/2 Solenoid Valve, Normally Closed, Port (In) 1/2" NPT, Port (Out) 1/2" NPT, 110/120 VAC
Product Details
- Mounting Base Mounted
- Media Temperature 40 to 175 F (4 to 80 C)
- Poppet/Spool Material Acetal & Stainless Steel
- Weight (kg) 0.6
- Function 2/2 Single Solenoid
- Media Temperature (Celsius) 4 to 80
- Connection EN 175301-803 Form C
- Power Consumption 50 Hz: 5.4 VA/60 Hz: 5.0 VA
- Actuation Electrical
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Thread Type NPT
- Length (mm 71.8
- Application General
- Fluid Media Filtered Air
- Voltage 110/120 VAC
- Outlet Pipe Size 1/2"
- Valve Type Directional Control
- Ambient Temperature (Celsius) 4 to 50
- Avg Cv 3.5
- Height 2.85 in (72.4 mm)
- Duty Rating Continuous Duty
- Valve Body Material Cast Aluminum
- Weight 1.4 lb (0.6 kg)
- Return Spring Assisted Air
- Pilot Type Internal/External
- Seal Material Buna-N
- Width (mm) 97.4
- Construction Poppet
- Operating Pressure (bar) vacuum to 10
- Manual Override Non-locking
- Height (mm 72.4
- Default Position Normally Closed
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Inlet Pipe Size 1/2"
- Width 3.83 in (97.4 mm)
- Series CP
- Pilot Supply Minimum equal to or greater than inlet pressure
- Length 2.83 in (71.8 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CP14NB47101Z on Applied Automation is $196.25. Order now.
