CP10DB97101W ROSS Controls Electronic Components
Part#:CP10DB97101W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

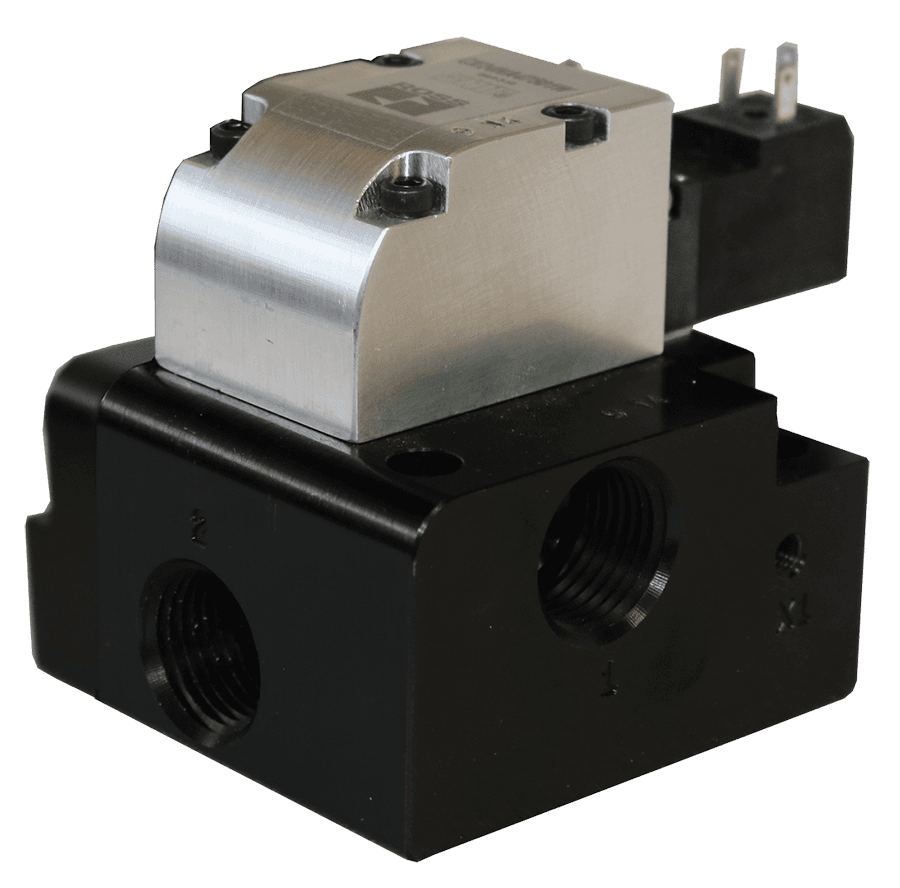

CP Series 2/2 Solenoid Valve, Normally Closed, Port (In) G2-1/2", Port (Out) G2", 24 VDC
Product Details
- Manual Override Locking
- Media Temperature 40 to 175 F (4 to 80 C)
- Function 2/2 Single Solenoid
- Height (mm 268.9
- Series CP
- Pilot Type Internal/External
- Fluid Media Filtered Air
- Operating Pressure (bar) vacuum to 10
- Valve Body Material Cast Aluminum
- Avg Cv 108
- Actuation Electrical
- Length (mm 171.5
- Width 6.13 in (155.8 mm)
- Voltage 24 VDC
- Application General
- Pilot Supply Minimum equal to or greater than inlet pressure
- Seal Material Buna-N
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Default Position Normally Closed
- Poppet/Spool Material Acetal & Stainless Steel
- Ambient Temperature (Celsius) 4 to 50
- Height 10.32 in (268.9 mm)
- Return Spring Assisted Air
- Power Consumption 5.8 watts nominal, 6.5 watts maximum
- Outlet Pipe Size 2"
- Construction Poppet
- Mounting Base Mounted
- Duty Rating Continuous Duty
- Inlet Pipe Size 2-1/2"
- Operating Pressure Vacuum to 145 psig (vacuum to 10 bar)
- Length 6.75 in (171.5 mm)
- Weight 19.5 lb (8.9 kg)
- Width (mm) 155.8
- Connection EN 175301-803 Form A
- Media Temperature (Celsius) 4 to 80
- Valve Type Directional Control
- Weight (kg) 8.9
- Thread Type G
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CP10DB97101W on Applied Automation is $1,233.00. Order now.
