8476C3351W ROSS Controls Electronic Components
Part#:8476C3351W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

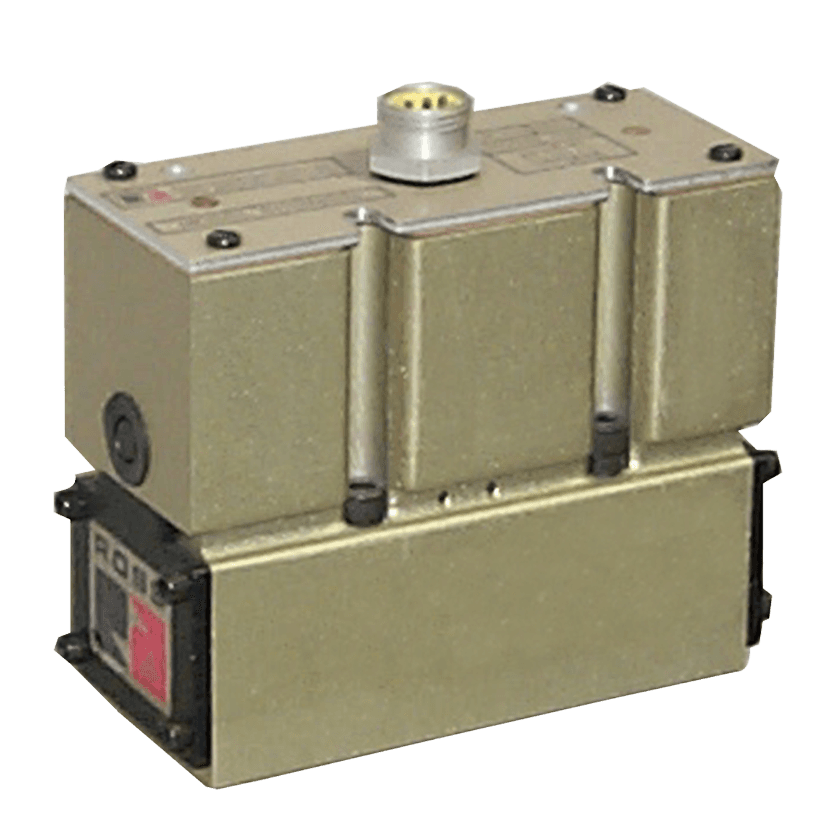

SAE Size 125, 84 Series, 5/2 Single Solenoid Valve, Poppet, Hardwire, 24 VDC
Product Details
- Valve Type Directional Control
- Application General
- Function 5/2 Single Solenoid
- Manual Override Non-locking
- Media Temperature 40 to 175 F (4 to 80 C)
- Operating Pressure Vacuum to 150 psig (10 bar)
- Valve Body Material Cast Aluminum
- Pilot Supply Minimum equal to or greater than inlet pressure
- Valve Standard SAE
- Duty Rating Continuous Duty
- Seal Material Buna-N
- Connection Hardwired
- Pilot Type Internal/External
- Voltage 24 VDC
- Length 1.8 in (45 mm)
- Width (mm) 140
- Default Position Normally Open
- Ambient Temperature (Celcius) 4 to 50
- Length (mm) 45
- Weight 2.8 lb (1.3 kg)
- Mounting Base Mounted
- Media Temperature (Celcius) 4 to 80
- Height (mm) 129
- Avg Cv 1.8
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Operating Pressure (bar) Vacuum to 10
- Return Air
- Size 125
- Width 5.50 in (140 mm)
- Series 84
- Construction Poppet
- Weight (kg) 1.3
- Poppet/Spool Material Rubber Coated Aluminum & Stainless Steel
- Actuation Electrical
- Fluid Media Filtered air
- Height 5.1 in (129 mm)
- Power Consumption 8 watts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
