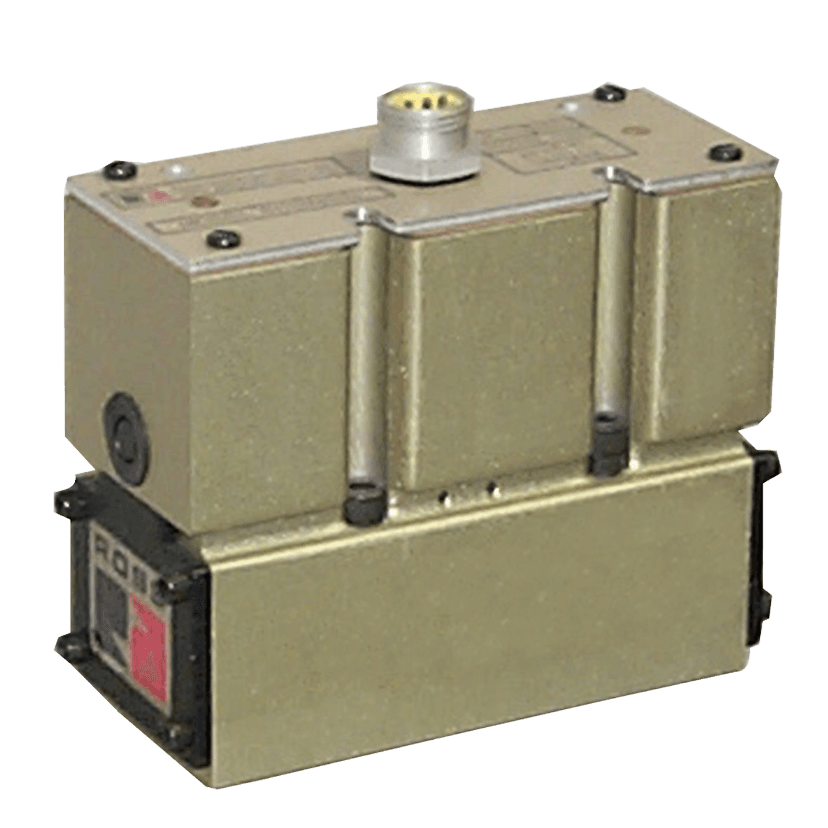

8476B6351W ROSS Controls Electronic Components
Part#:8476B6351W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description
SAE Size 500, 84 Series, 5/2 Single Solenoid Valve, Poppet, Hardwire, 24 VDC
Product Details
- Function 5/2 Single Solenoid
- Media Temperature (Celcius) 4 to 80
- Valve Body Material Cast Aluminum
- Weight (kg) 3.5
- Application General
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Width 9.80 in (248 mm)
- Poppet/Spool Material Rubber Coated Aluminum & Stainless Steel
- Duty Rating Continuous Duty
- Pilot Supply Minimum equal to or greater than inlet pressure
- Series 84
- Connection Hardwired
- Valve Standard SAE
- Size 500
- Length (mm) 76
- Voltage 24 VDC
- Manual Override Non-locking
- Length 3.0 in (76 mm)
- Height (mm) 121
- Actuation Electrical
- Ambient Temperature (Celcius) 4 to 50
- Construction Poppet
- Avg Cv 7.9
- Pilot Type Internal/External
- Media Temperature 40 to 175 F (4 to 80 C)
- Width (mm) 248
- Weight 7.7 lb (3.5 kg)
- Valve Type Directional Control
- Fluid Media Filtered air
- Power Consumption 14 watts
- Default Position Normally Open
- Operating Pressure (bar) Vacuum to 10
- Seal Material Buna-N
- Return Air
- Mounting Base Mounted
- Operating Pressure Vacuum to 150 psig (10 bar)
- Height 4.8 in (121 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8476B6351W on Applied Automation is $605.25. Order now.
