8076C3351Z ROSS Controls Electronic Components
Part#:8076C3351Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

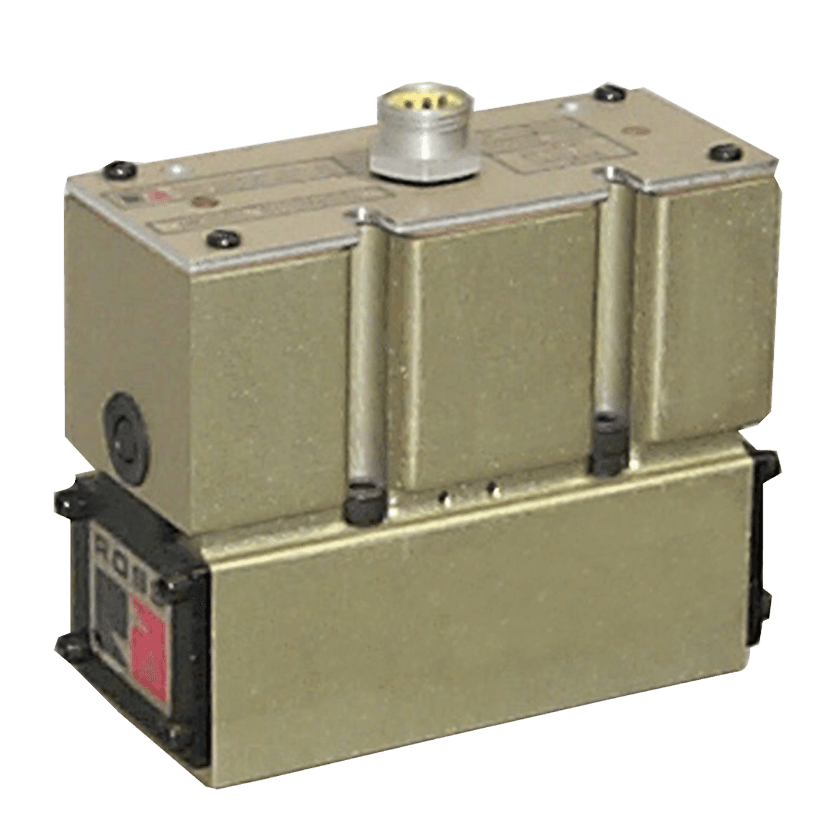

SAE Size 125, 80 Series, 5/2 Single Solenoid Valve, Spool & Sleeve, Hardwire, 110/120 VAC
Product Details
- Default Position Normally Open
- Manual Override Non-locking
- Size 125
- Width (mm) 140
- Valve Standard SAE
- Ambient Temperature (Celcius) 4 to 50
- Poppet/Spool Material Stainless Steel
- Power Consumption 8 VA inrush, 6 VA holding on 50/60 Hz
- Return Spring
- Duty Rating Continuous Duty
- Operating Pressure Vacuum to 150 psig (10 bar)
- Length (mm) 45
- Application General
- Operating Pressure (bar) Vacuum to 10
- Avg Cv 1.4
- Valve Type Directional Control
- Voltage 110/120 VAC
- Seal Material Buna-N
- Connection Hardwired
- Actuation Electrical
- Pilot Supply Minimum equal to or greater than inlet pressure
- Width 5.50 in (140 mm)
- Mounting Base Mounted
- Valve Body Material Cast Aluminum
- Height 5.1 in (129 mm)
- Weight (kg) 1.6
- Construction Spool & Sleeve
- Media Temperature 40 to 175 F (4 to 80 C)
- Height (mm) 129
- Function 5/2 Single Solenoid
- Media Temperature (Celcius) 4 to 80
- Ambient Temperature 3.5 (1.6)
- Weight 3.5 lb (1.6 kg)
- Series 80
- Pilot Type Internal/External
- Fluid Media Filtered air
- Length 1.8 in (45 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
