5X00B5044 ROSS Controls Electronic Components
Part#:5X00B5044
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

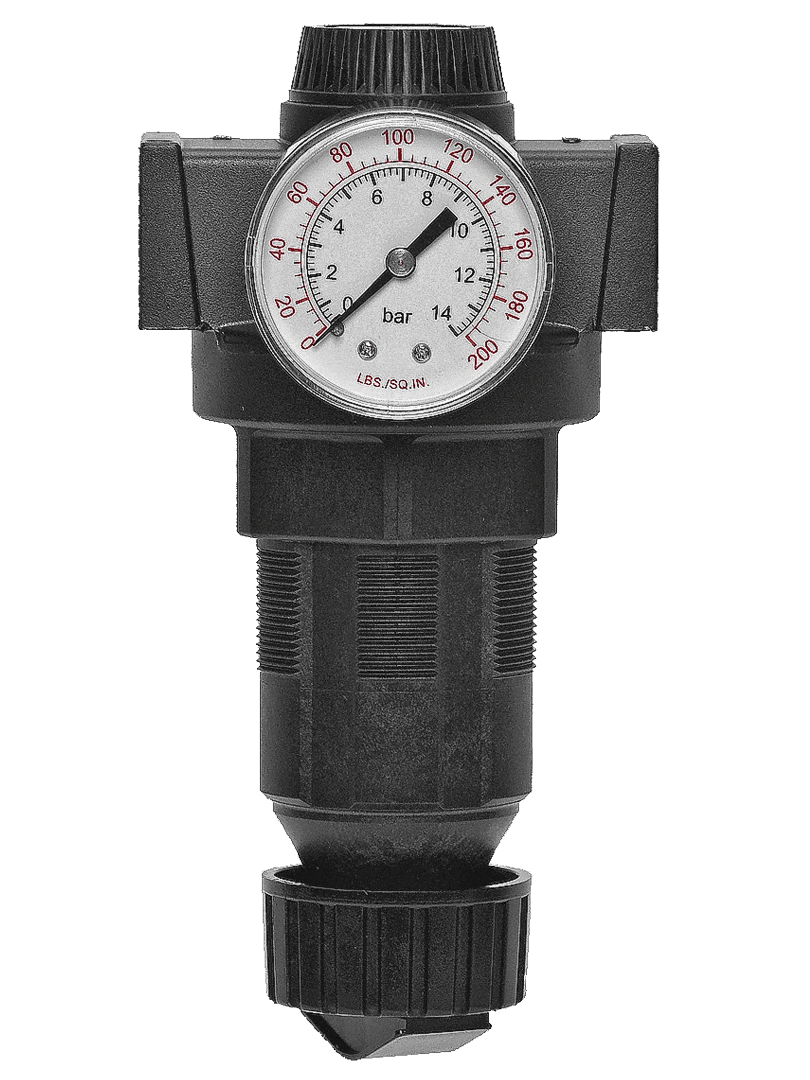

Regulator Full-Size Series, Diaphragm, Self-relieving, Reverse Flow, 0-125 (0-8.6) Pressure Range, T-Handle Adjustment, 0-200 (0-13.8) Gauge, Port 1 Threaded 3/4", Port 2 Threaded 3/4", NPT
Product Details
- RELIEVING Self-relieving
- MAXIMUM FLOW 155 scfm
- REGULATED PRESSURE RANGE psig (bar) 0 - 125 (0 - 8.6)
- Weight 2.06 lbs (0.93 kg)
- MEDIA TEMPERATURE RANGE 40 to 175 F (4 to 79 C)
- PORT SIZE 3/4
- PORT TYPE Threaded Ports
- MOUNTING Modular
- ADJUSTMENT T-Handle
- GAUGE psig (bar) 0-200 (0-13.8)
- FLOW MEDIA Compressed Air
- INLET PRESSURE RANGE Up to 300 psig (20.7 bar)
- FLOW OPTIONS Reverse
- PORT THREAD NPT
- CONSTRUCTION Diaphragm
- AMBIENT TEMPERATURE RANGE 40 to 175 F (4 to 79 C)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5X00B5044 on Applied Automation is $168.50. Order now.
