5X00B5035 ROSS Controls Electronic Components
Part#:5X00B5035
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

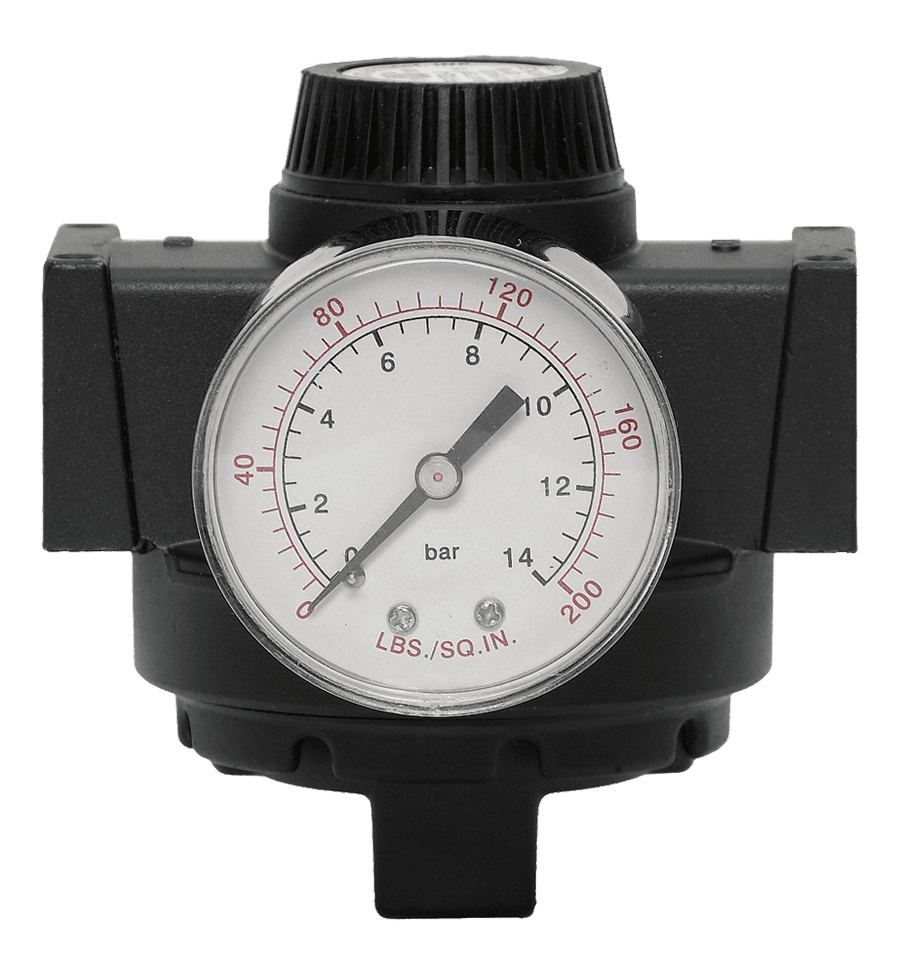

Remote Pilot Regulator Full-Size Series, Diaphragm, Self-Relieving, Remote Pilot, Standard Flow, 0-200 (0-13.8) Pressure Range, 0-200 (0-13.8) Gauge, Port 1 Threaded 3/4", Port 2 Threaded 3/4", NPT
Product Details
- MEDIA TEMPERATURE RANGE 40 to 175 F (4 to 79 C)
- INLET PRESSURE RANGE Up to 300 psig (20.7 bar)
- GAUGE psig (bar) 0 - 200 (0 13.8)
- FLOW OPTION Standard
- RELIEVING Self-Relieving
- PILOT Remote
- MAXIMUM FLOW 150 scfm
- REGULATED PRESSURE RANGE psig (bar) 0 - 200 (0 - 13.8)
- MOUNTING Modular
- PORT TYPE Threaded Ports
- PORT SIZE 3/4
- CONSTRUCTION Diaphragm
- FLOW MEDIA Compressed Air
- Weight 2.06 lbs (0.93 kg)
- ADJUSTMENT Knob
- AMBIENT TEMPERATURE RANGE 40 to 175 F (4 to 79 C)
- PORT THREAD NPT
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5X00B5035 on Applied Automation is $265.50. Order now.
