5216A3007 ROSS Controls Electronic Components

Name: 5216A3007
Brand: ROSS Controls
Price: 754.75 USD
Availability: BackOrder

Part#:5216A3007

Category:Electronic Components

Product Lifecycle:Active

Product description

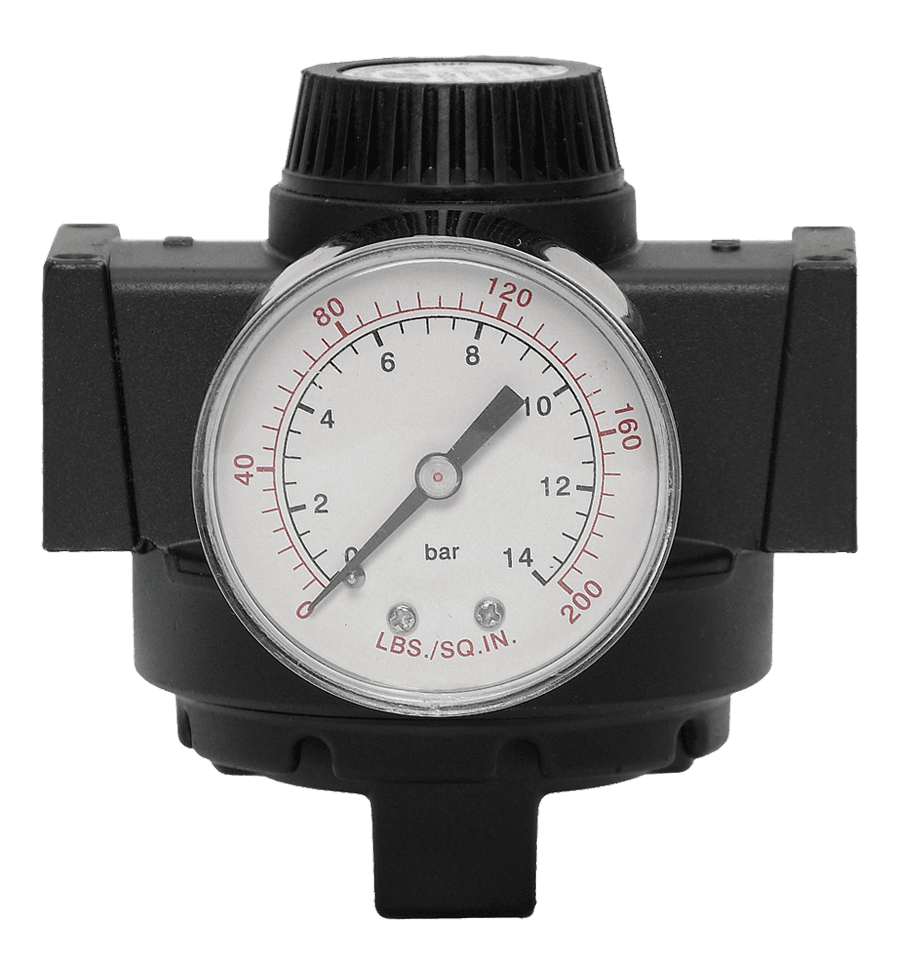

Remote Pilot Regulator Full-Size Series, Diaphragm, High-Relief, Remote Pilot, Standard Flow, 0-200 (0-13.8) Pressure Range, 0-200 (0-13.8) Gauge, Port 1 Threaded 3/8, Port 2 Threaded 3/8, NPT

Product Details

FLOW MEDIA
Compressed Air
MAXIMUM FLOW
150 scfm
RELIEVING
High-Relief
MEDIA TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
GAUGE psig (bar)
0 - 200 (0 13.8)
REGULATED PRESSURE RANGE psig (bar)
0 - 200 (0 - 13.8)
MOUNTING
Inline
INLET PRESSURE RANGE
Up to 300 psig (20.7 bar)
ADJUSTMENT
Knob
AMBIENT TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
FLOW OPTION
Standard
PORT SIZE
3/8
CONSTRUCTION
Diaphragm
Weight
2.06 lbs (0.93 kg)
PORT TYPE
Threaded Ports
PORT THREAD
NPT
PILOT
Remote

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5216A3007 on Applied Automation is $754.75. Order now.

5216A3007 Related Documents

ProductCatalog.pdf

$754.75

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$754.75

$754.75 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

Your Safety, Our Priority.

Warranty

Manufacturer warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 5216A3007 with other Electronic Components products

FLOW MEDIA

MAXIMUM FLOW

RELIEVING

MEDIA TEMPERATURE RANGE

GAUGE psig (bar)

REGULATED PRESSURE RANGE ...

MOUNTING

INLET PRESSURE RANGE

ADJUSTMENT

AMBIENT TEMPERATURE RANGE

Selected product

Backordered

ROSS Controls

Remote Pilot Regulator Full-Size Series, Diaphragm, High-Relief, Remote Pilot, Standard Flow, 0-200 ...

FLOW MEDIACompressed Air

MAXIMUM FLOW150 scfm

RELIEVINGHigh-Relief

MEDIA TEMPERATURE RANGE40 to 175 F (4 to 79 C)

GAUGE psig (bar)0 - 200 (0 13.8)

REGULATED PRESSURE RANGE psig (bar)0 - 200 (0 - 13.8)

MOUNTINGInline

INLET PRESSURE RANGEUp to 300 psig (20.7 bar)

ADJUSTMENTKnob

AMBIENT TEMPERATURE RANGE40 to 175 F (4 to 79 C)

3 in stock

Mencom

Standard, CNE series, Male Rectangular Insert, size 104.27, 24 pin, 16 amp, Screw, (25-48)

FLOW MEDIA-

MAXIMUM FLOW-

RELIEVING-

MEDIA TEMPERATURE RANGE-

GAUGE psig (bar)-

REGULATED PRESSURE RANGE psig (bar)-

MOUNTING-

INLET PRESSURE RANGE-

ADJUSTMENT-

AMBIENT TEMPERATURE RANGE-

161 in stock

Mencom

.5-NPT, Plastic Gland, Gray, 0.394 - 0.551

FLOW MEDIA-

MAXIMUM FLOW-

RELIEVING-

MEDIA TEMPERATURE RANGE-

GAUGE psig (bar)-

REGULATED PRESSURE RANGE psig (bar)-

MOUNTING-

INLET PRESSURE RANGE-

ADJUSTMENT-

AMBIENT TEMPERATURE RANGE-

Relevant products

5216A2007

Verified stock: 0

Remote Pilot Regulator Full-Size Series, Diaphragm, High-Relief, Remote Pilot, Standard Flow, 0-200 (0-13.8) Pressure Range, 0-200 (0-13.8) Gauge, Port 1 Threaded 1/4", Port 2 Threaded 1/4", NPT

ROSS Controls

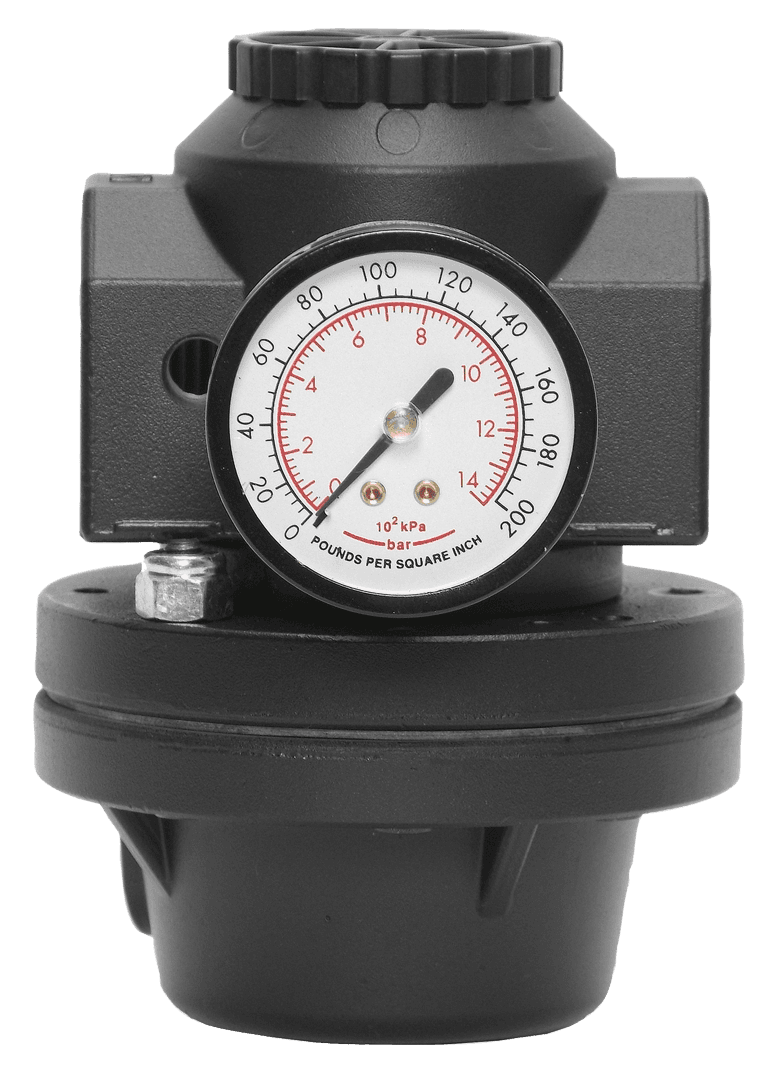

5216A5007
