5213D6017 ROSS Controls Electronic Components

Name: 5213D6017
Brand: ROSS Controls
Price: 281.25 USD
Availability: BackOrder

Part#:5213D6017

Manufacturer:ROSS Controls

Category:Electronic Components

Product Lifecycle:Active

Product description

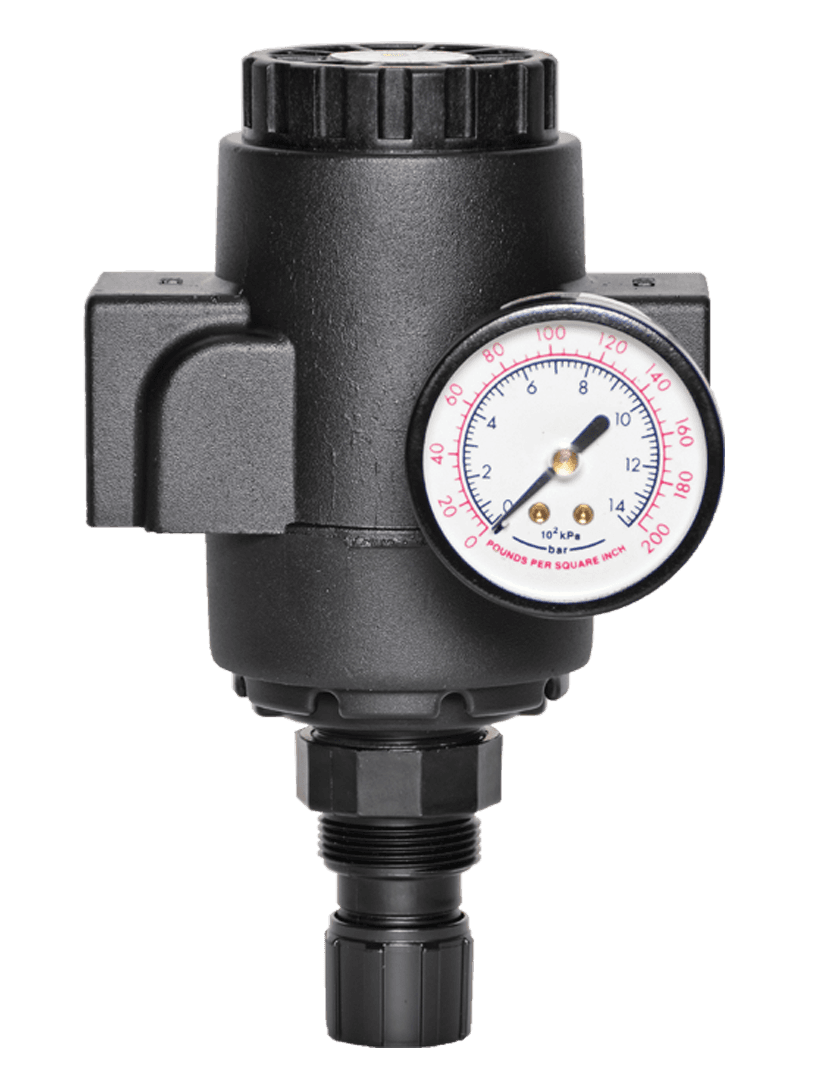

Precision Regulator High-Capacity Series, Diaphragm, Self-Relieving, 0-100 (0-6.9) Pressure Range, Knob Adjustment, 0-200 (0 13.8) Gauge, Port 1 Threaded 1", Port 2 Threaded 1", NPT

Product Details

FLOW OPTION
Standard
PORT THREAD
NPT
MEDIA TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
FLOW MEDIA
Compressed Air
AMBIENT TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
PANEL MOUNT NUT
Not Included
MOUNTING
Inline
REGULATED PRESSURE RANGE psig (bar)
15 - 200 (1 - 13.8)
ADJUSTMENT
Knob
Weight
2.0 lbs (0.91 kg)
GAUGE psig (bar)
0 - 200 (0 13.8)
RELIEVING
Self-Relieving
MAXIMUM FLOW
700 scfm
CONSTRUCTION
Diaphragm
PORT SIZE
1
PORT TYPE
Threaded Ports
INLET PRESSURE RANGE
Up to 300 psig (20.7 bar)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5213D6017 on Applied Automation is $281.25. Order now.
