5211C1004 ROSS Controls Electronic Components

Name: 5211C1004
Brand: ROSS Controls
Price: 57.75 USD
Availability: BackOrder

Part#:5211C1004

Manufacturer:ROSS Controls

Category:Electronic Components

Product Lifecycle:Active

Product description

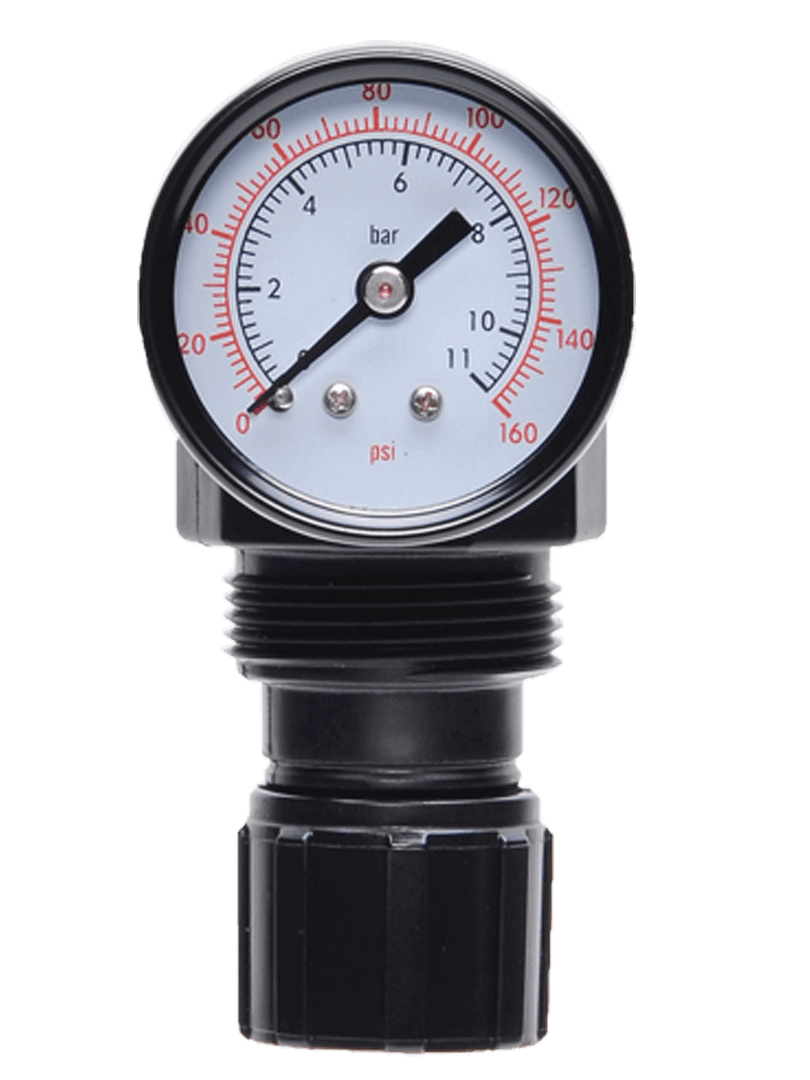

Regulator Miniature Series, Piston, Self-relieving, Standard Flow, 0-100 (0-6.9) Pressure Range, Knob Adjustment, 0-160 (0-11) Gauge, Port 1 Threaded 1/8", Port 2 Threaded 1/8", NPT

Product Details

GAUGE psig (bar)
0 - 160 (0 -11)
PORT THREAD
NPT
MOUNTING
Inline
FLOW MEDIA
Compressed Air
RELIEVING
Self-relieving
INLET PRESSURE RANGE
Up to 300 psig (20.7 bar)
FLOW OPTIONS
Standard
PORT SIZE
1/8
Weight
0.24 lbs (0.11 kg)
ADJUSTMENT
Knob
MEDIA TEMPERATURE RANGE
40 to 125 F (4 to 52 C)
PANEL MOUNT NUT
Not Included
AMBIENT TEMPERATURE RANGE
40 to 125 F (4 to 52 C)
PORT TYPE
Threaded Ports
CONSTRUCTION
Piston
MAXIMUM FLOW
20 scfm
REGULATED PRESSURE RANGE psig (bar)
0-100 (0-6.9)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5211C1004 on Applied Automation is $57.75. Order now.
