5211B8027 ROSS Controls Electronic Components

Name: 5211B8027
Brand: ROSS Controls
Price: 778.25 USD
Availability: BackOrder

Part#:5211B8027

Manufacturer:ROSS Controls

Category:Electronic Components

Product Lifecycle:Active

Product description

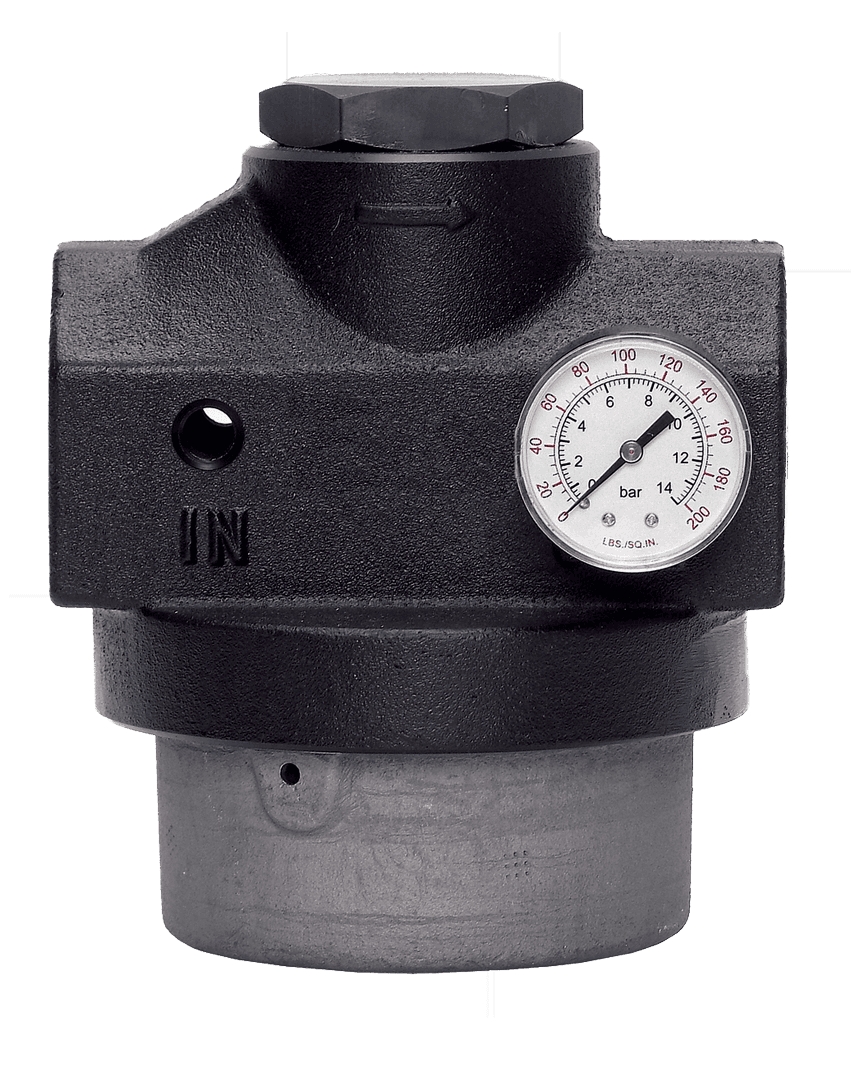

Remote Pilot Regulator High-Capacity Series, Diaphragm, Self-Relieving, Remote Pilot, Standard Flow, 0-200 (0-13.8) Pressure Range, 0-200 (0-13.8) Gauge, Port 1 Threaded 1-1/2", Port 2 Threaded 1-1/2", NPT

Product Details

MOUNTING
Inline
GAUGE psig (bar)
0 - 200 (0 - 13.8)
PORT THREAD
NPT
CONSTRUCTION
Diaphragm
MEDIA TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
FLOW MEDIA
Compressed Air
MAXIMUM FLOW
900 scfm
FLOW OPTION
Standard
PORT SIZE
1-1/2
INLET PRESSURE RANGE
Up to 300 psig (20.7 bar)
RELIEVING
Self-Relieving
ADJUSTMENT
Remove Pilot
AMBIENT TEMPERATURE RANGE
40 to 175 F (4 to 79 C)
PORT TYPE
Threaded Ports
PILOT
Remote
REGULATED PRESSURE RANGE psig (bar)
0 - 200 (0 - 13.8)
Weight
8.94 lbs (4.06 kg)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5211B8027 on Applied Automation is $778.25. Order now.
