5032B6117 ROSS Controls Electronic Components
Part#:5032B6117
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

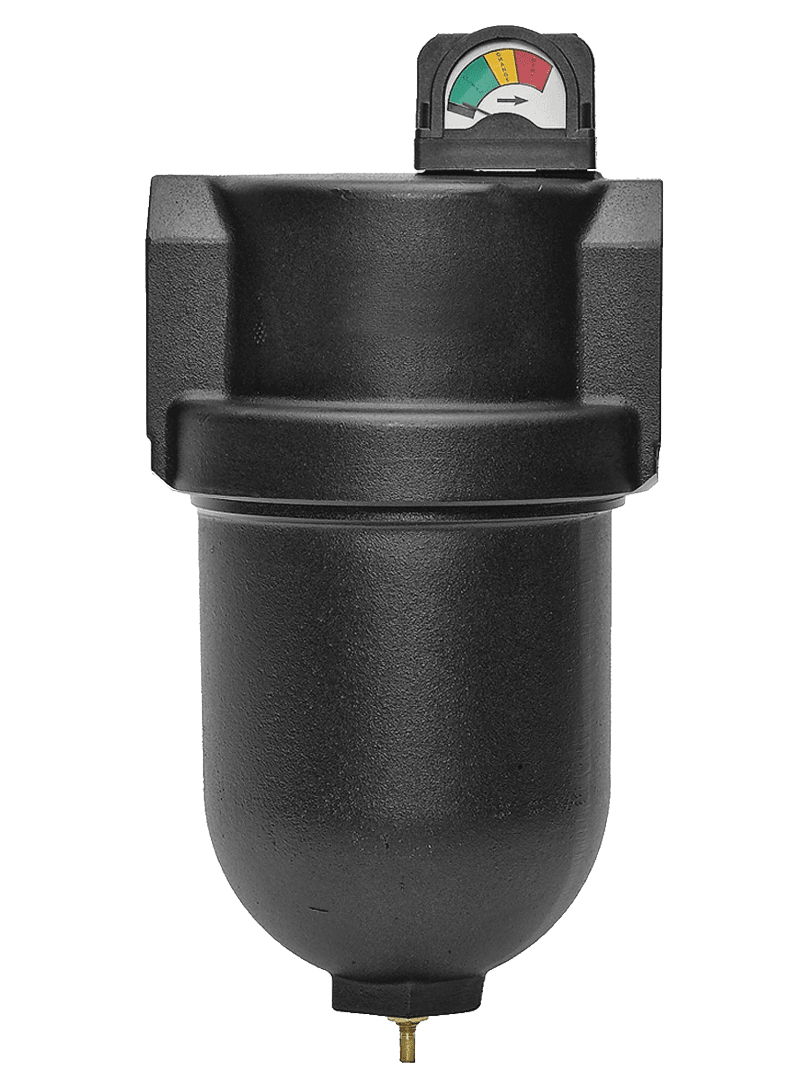

Coalescing Filter High Capacity Series, Manual Drain, 16 oz (480 ml) Metal Bowl, 0.3 µm Filter, Large Dual Face, Threaded Ports 1" NPT
Product Details
- PORT TYPE Threaded Ports
- INLET PRESSURE RANGE 0 to 200 psig (0 to 14 bar)
- GAUGE Large Dual Face
- PORT THREAD NPT
- BOWL SIZE 16 oz (480 ml)
- MAXIMUM FLOW 220 scfm
- FILTER MATERIAL Borosilicate Glass
- AMBIENT TEMPERATURE RANGE 40 to 175 F (4 to 79 C)
- FILTER TYPE 0.3 µm
- BOWL TYPE Metal
- Weight 3.2 lbs (1.45 kg)
- MOUNTING Inline
- DRAIN TYPE Manual
- PORT SIZE 1
- FLOW MEDIA Compressed Air
- MEDIA TEMPERATURE RANGE 40 to 175 F (4 to 79 C)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 5032B6117 on Applied Automation is $549.00. Order now.
