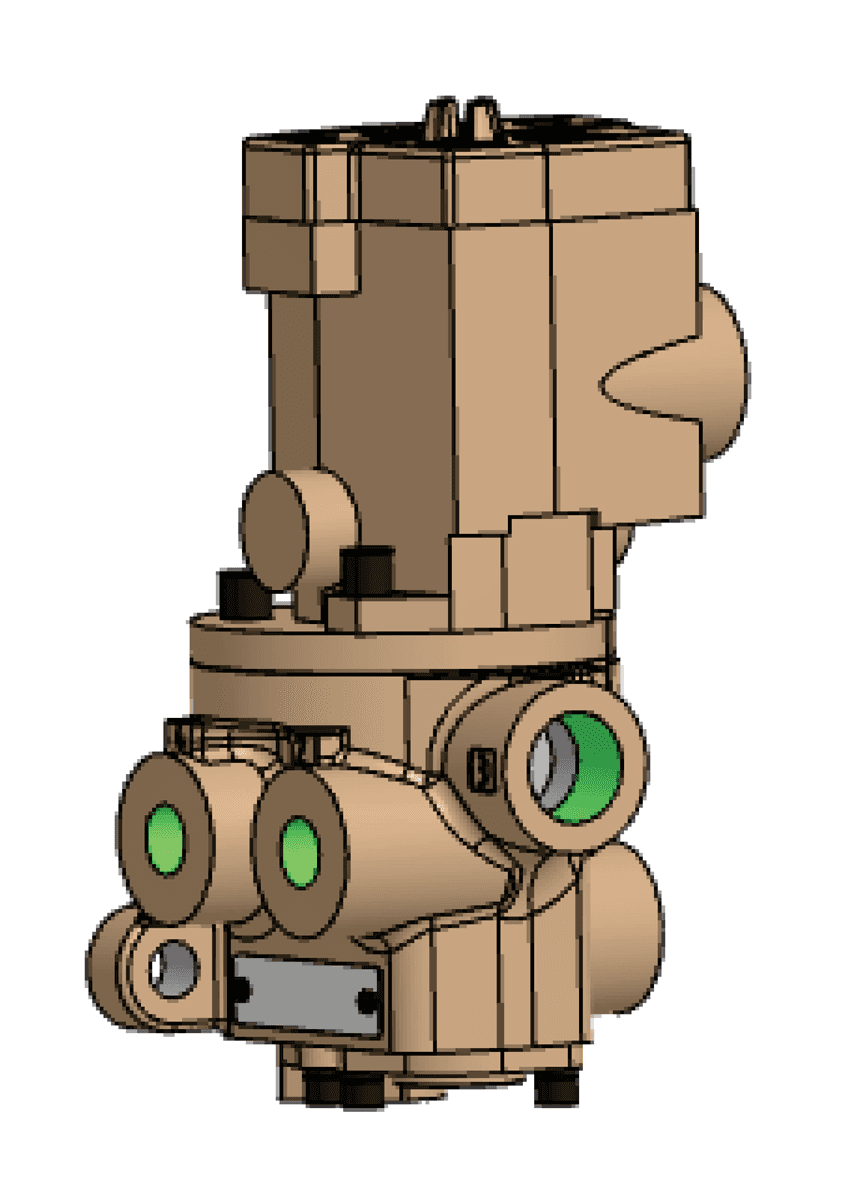

2776B8011W ROSS Controls Electronic Components
Part#:2776B8011W
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description
27 Series, 4/2 Single Solenoid Pilot Valve, Normally Open, Spring Return, Ports (In-Out) 1-1/2", NPT, Ports (Exhaust) 2-1/2" NPT, 24 VDC
Product Details
- Valve Type Directional Control
- Power Consumption 20 watts
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Height (mm) 262
- Manual Override Non-locking
- Media Temperature 40 to 175 F (4 to 80 C)
- Poppet/Spool Material Acetal, Stainless Steel
- Width 6.49 in (165 mm)
- Construction Poppet
- Media Temperature (Celsius) 4 to 80
- Ambient Temperature (Celsius) 4 to 50
- Width (mm) 165
- Series 27
- Fluid Media Filtered Air
- Pilot Type Internal/External
- Inlet Pipe Size 1-1/2"
- Cv (1-2) 22
- Connection Hardwired
- Valve Body Material Cast Aluminum
- Default Position Normally Open
- Outlet Pipe Size 1-1/2"
- Mounting Inline
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Exhaust Pipe Size 2-1/2"
- Height 10.32 in (262 mm)
- Application General
- Pilot Supply Minimum equal to or greater than inlet pressure
- Size 1-1/4"
- Weight 11.3 lb (5.1 kg)
- Return Spring
- Operating Pressure (bar) 1 to 10
- Cv (1-4) 22
- Cv (2-3) 27
- Voltage 24 VDC
- Seal Material Buna-N
- Function 4/2 Single Solenoid
- Weight (kg) 5.1
- Thread Type NPT
- Duty Rating Continuous Duty
- Actuation Electrical
- Cv (4-3) 27
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2776B8011W on Applied Automation is $1,127.00. Order now.
