2776B6011Z ROSS Controls Electronic Components
Part#:2776B6011Z
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

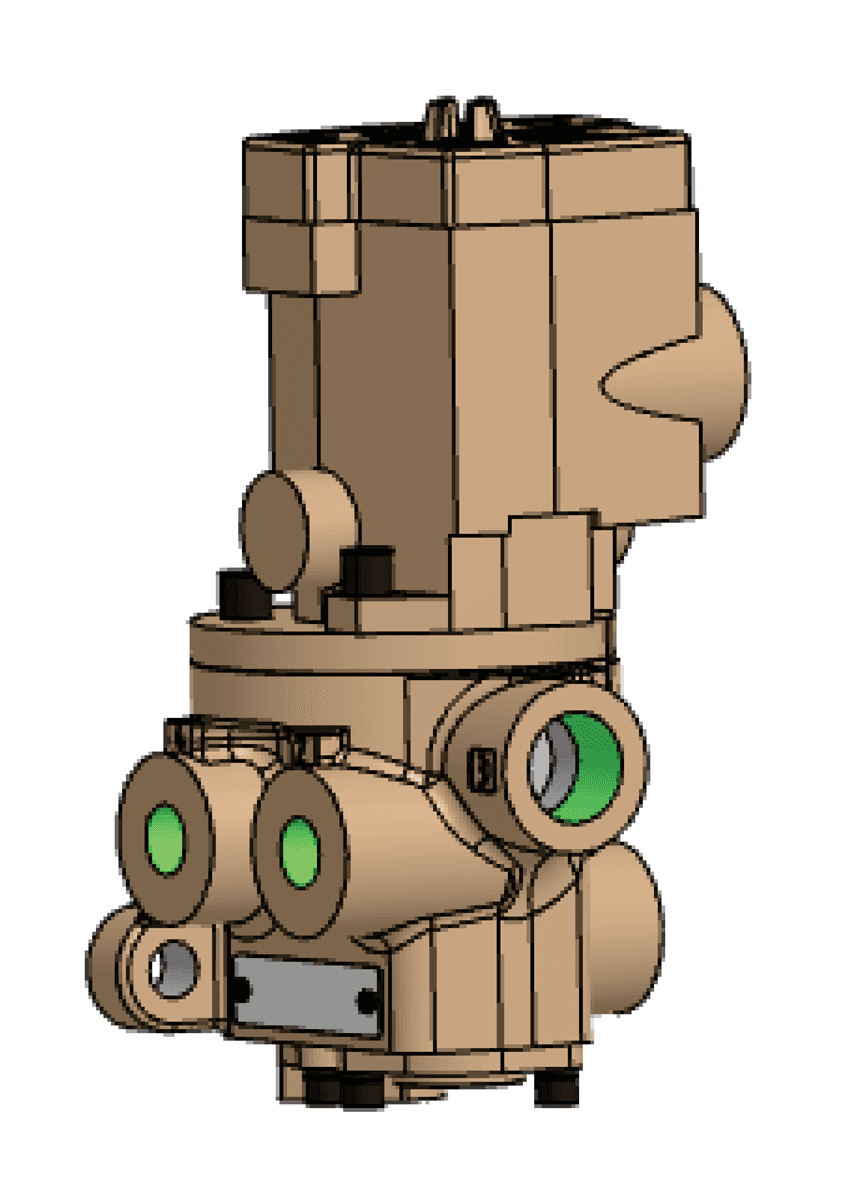

27 Series, 4/2 Single Solenoid Pilot Valve, Normally Open, Spring Return, Ports (In-Out) 1", NPT, Ports (Exhaust) 1" NPT, 110/120 VAC
Product Details
- Connection Hardwired
- Operating Pressure (bar) 1 to 10
- Outlet Pipe Size 1"
- Width (mm) 118
- Construction Poppet
- Valve Body Material Cast Aluminum
- Ambient Temperature 40 to 120 F (4 to 50 C)
- Width 4.63 in (118 mm)
- Valve Type Directional Control
- Operating Pressure 15 to 150 psig (1 to 10 bar)
- Power Consumption 190 VA inrush, 40 VA holding on 50 or 60 Hz
- Length (mm) 131
- Thread Type NPT
- Seal Material Buna-N
- Inlet Pipe Size 1"
- Weight (kg) 2.4
- Return Spring
- Media Temperature 40 to 175 F (4 to 80 C)
- Size 3/4"
- Height (mm) 227
- Manual Override Non-locking
- Duty Rating Continuous Duty
- Default Position Normally Open
- Cv (4-3) 10
- Height 8.94 in (227 mm)
- Application General
- Fluid Media Filtered Air
- Exhaust Pipe Size 1"
- Function 4/2 Single Solenoid
- Weight 5.3 lb (2.4 kg)
- Media Temperature (Celsius) 4 to 80
- Actuation Electrical
- Ambient Temperature (Celsius) 4 to 50
- Cv (2-3) 10
- Series 27
- Poppet/Spool Material Acetal, Stainless Steel
- Pilot Type Internal/External
- Length 5.15 in (131 mm)
- Cv (1-2) 7.8
- Mounting Inline
- Pilot Supply Minimum equal to or greater than inlet pressure
- Voltage 110/120 VAC
- Cv (1-4) 7.8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2776B6011Z on Applied Automation is $503.00. Order now.
