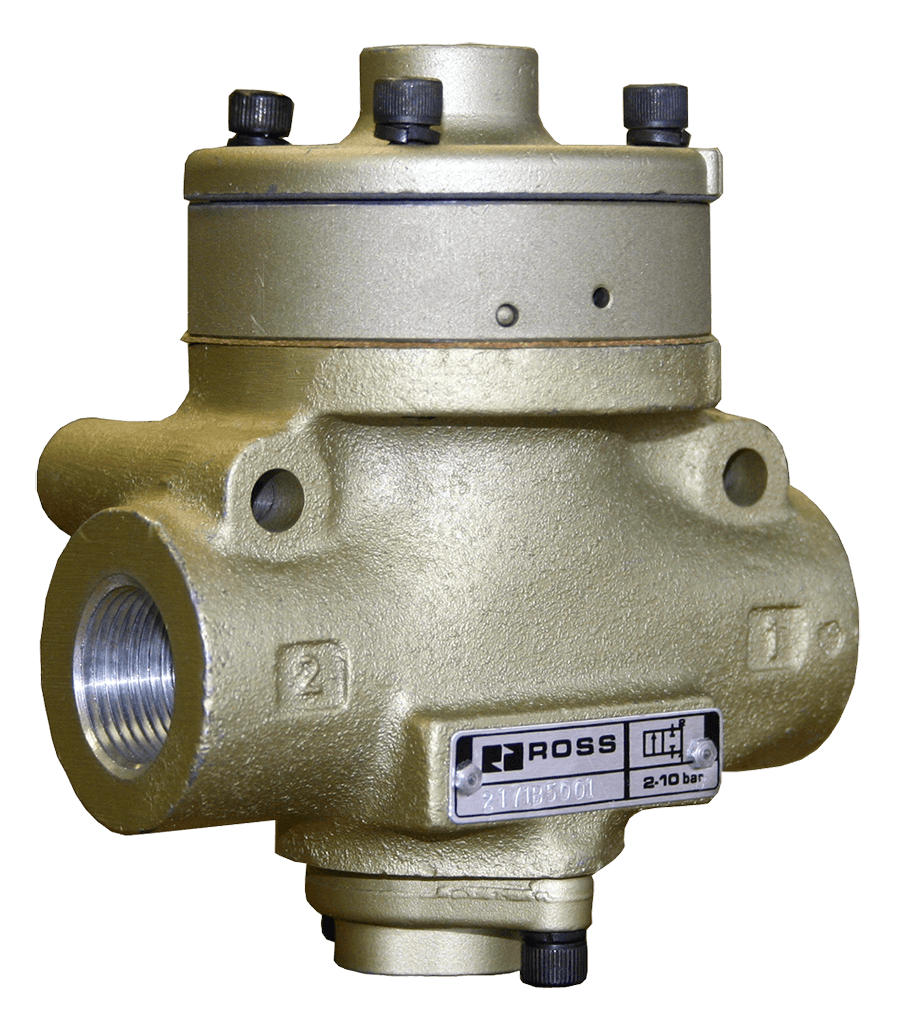

2773B5001Z ROSS Controls Electronic Components

Product Details

• Application
  General
• Valve Body Material
  Cast Aluminum
• Size
  3/4"
• Outlet Pipe Size
  3/4"
• Return
  Spring
• Fluid Media
  Filtered Air
• Ambient Temperature
  40 to 120 F (4 to 50 C)
• Weight (kg)
  1.5
• Valve Type
  Directional Control
• Poppet/Spool Material
  Acetal, Stainless Steel
• Ambient Temperature (Celsius)
  4 to 50
• Width (mm)
  91
• Default Position
  Normally Closed
• Operating Pressure
  15 to 150 psig (1 to 10 bar)
• Actuation
  Electrical
• Inlet Pipe Size
  3/4"
• Height (mm)
  200
• Series
  27
• Operating Pressure (bar)
  1 to 10
• Exhaust Pipe Size
  1"
Width
3.59 in (91 mm)
Mounting
Inline
Media Temperature
40 to 175 F (4 to 80 C)
Pilot Type
Internal/External
Function
3/2 Single Solenoid
Height
7.89 in (200 mm)
Connection
Hardwired
Pilot Supply Minimum
equal to or greater than inlet pressure
Length (mm)
116
Weight
3.3 lb (1.5 kg)
Construction
Poppet
Media Temperature (Celsius)
4 to 80
Voltage
110/120 VAC
Cv (1-2)
7.7
Thread Type
NPT
Duty Rating
Continuous Duty
Power Consumption
190 VA inrush, 40 VA holding on 50 or 60 Hz
Cv (1-4)
11
Manual Override
Non-locking
Seal Material
Buna-N
Length
4.46 in (116 mm)
