2753A9001 ROSS Controls Electronic Components
Part#:2753A9001
Manufacturer:ROSS Controls
Category:Electronic Components
Product Lifecycle:Active
Product description

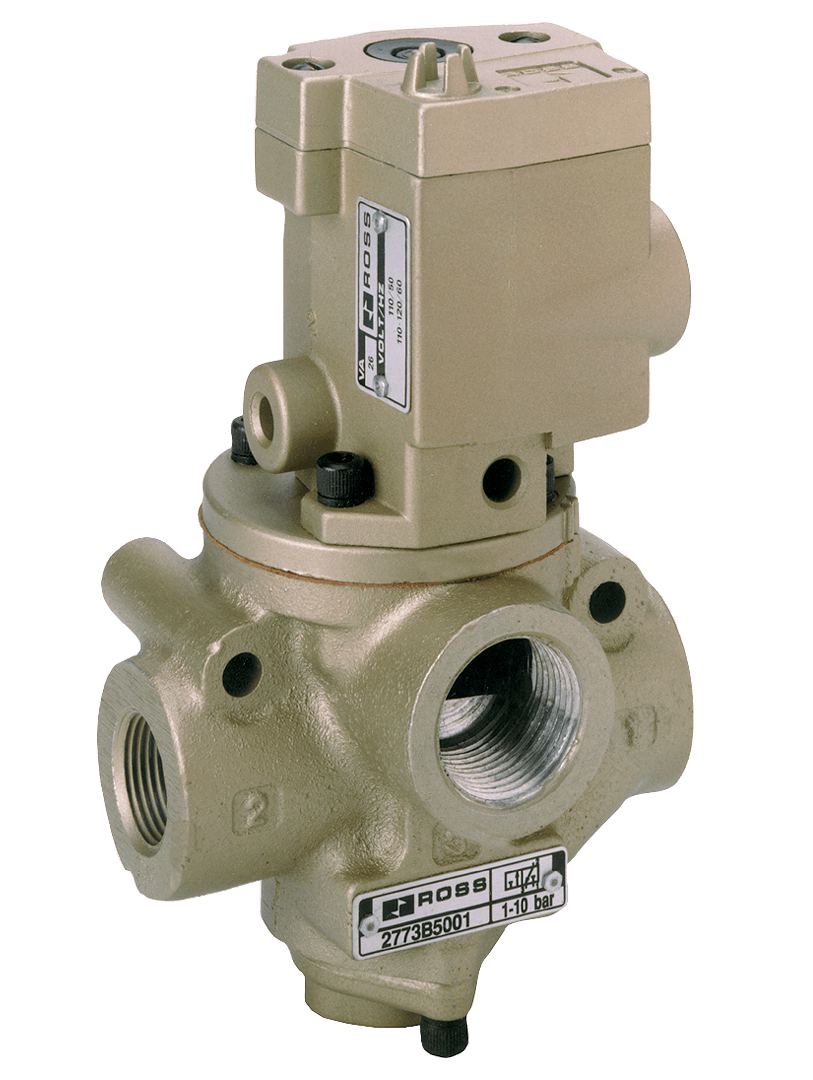

27 Series, 3/2 Single Air Pilot Valve, Normally Closed, Spring Return, Ports (In-Out) 2", NPT, Ports (Exhaust) 2-1/2" NPT
Product Details
- Actuation Pneumatic
- Pilot Supply Minimum equal to or greater than inlet pressure
- Exhaust Pipe Size 2-1/2"
- Cv (1-2) 70
- Mounting Inline
- Seal Material Buna-N
- Height (mm) 240
- Valve Type Directional Control
- Fluid Media Filtered Air
- Operating Pressure (bar) 2 to 10
- Width (mm) 161
- Thread Type NPT
- Poppet/Spool Material Acetal, Stainless Steel
- Weight (kg) 6.4
- Pilot Type External
- Function 3/2 Single Pilot
- Cv (2-3) 70
- Series 27
- Media Temperature (Celsius) 4 to 80
- Length (mm) 219
- Inlet Pipe Size 2"
- Application General
- Ambient Temperature (Celsius) 4 to 80
- Weight 14.3 lb (6.4 kg)
- Height 9.46 in (240 mm)
- Construction Poppet
- Media Temperature 40 to 175 F (4 to 80 C)
- Length 8.62 in (219 mm)
- Outlet Pipe Size 2"
- Default Position Normally Closed
- Valve Body Material Cast Aluminum
- Size 2"
- Return Spring
- Ambient Temperature 40 to 175 F (4 to 80 C)
- Operating Pressure 30 to 150 psig (2 to 10 bar)
- Width 6.33 in (161 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2753A9001 on Applied Automation is $1,463.00. Order now.
