1968A1018 ROSS Controls Electronic Components

Name: 1968A1018
Brand: ROSS Controls
Price: 28.25 USD
Availability: BackOrder

Part#:1968A1018

Manufacturer:ROSS Controls

Category:Electronic Components

Product Lifecycle:Active

Product description

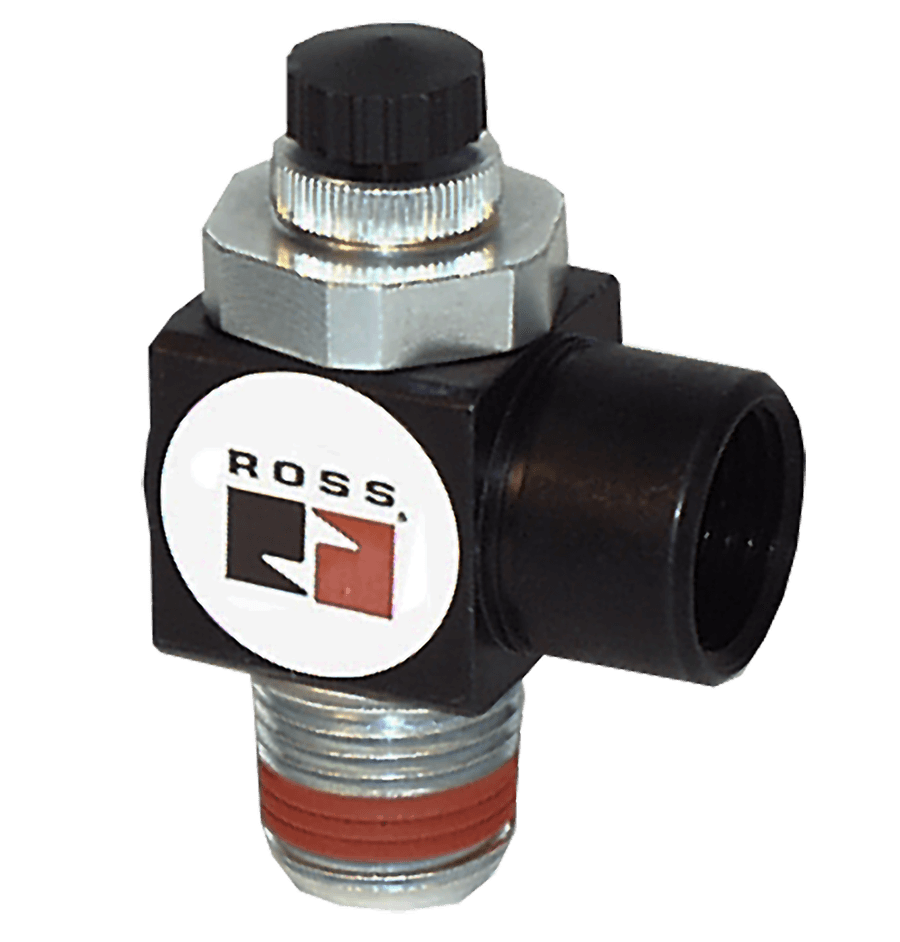

19 Series Flow Control Valve, Knob Adjustment, Right Angle, 1/8" NPT

Product Details

Application
General
Media Temperature (Celsius)
4 to 80
Length
0.63 in (16 mm)
Mounting
Inline
Width (mm)
25
Inlet Pipe Size
1/8"
Operating Pressure
5 to 150 psig (0.3 to 10 bar)
Valve Body Material
Cast Aluminum
Valve Type
Flow Control Valve
Avg Cv
0.3
Height (mm)
36
Construction
Poppet
Fluid Media
Filtered Air
Profile
Right Angle
Thread Type
NPT
Length (mm)
16
Weight (kg)
0.4
Actuation
Pneumatic
Media Temperature
40 to 175 F (4 to 80 C)
Ambient Temperature (Celsius)
4 to 80

Adjustment

Knob

Function

2/2

Operating Pressure (bar)

0.3 to 10

Weight

0.8 lb (0.4 kg)

Series

Ambient Temperature

40 to 175 F (4 to 80 C)

Height

1.4 in (36 mm)

Outlet Pipe Size

1/8"

Width

1.0 in (25 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 1968A1018 on Applied Automation is $28.25. Order now.

1968A1018 Related Documents

ProductCatalog.pdf InstallationInstructions.pdf
