PXU41C30 Red Lion Industrial Automation Components

PXU41C30 on Applied Automation
Red Lion

Part#:PXU41C30

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

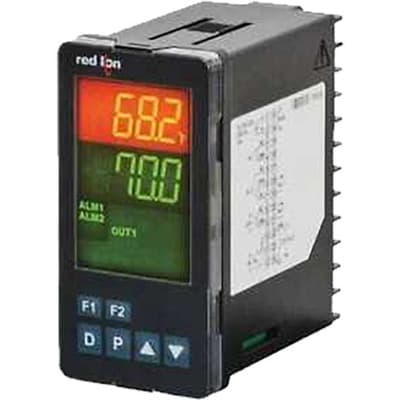

Red Lion PXU41C30 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design that includes 1 user input, RS-485 analog retransmission output (0-10Vdc control analog output), and a secondary relay control output. The device is housed in a 1/8 DIN vertical enclosure (48x96mm) with 12mm orange/green digits, and it requires a supply voltage (AC) of 100-240Vac, accommodating a wide range of voltages from 100Vac to 240Vac. The PXU PID controllers series part has dimensions of 1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77"), and it offers a degree of protection rated at IP65 NEMA 4X. With a frequency of 10Hz for analog input sampling rate and RS-485 communication protocol, it includes 1 x digital output (contact type) for secondary control output 2, and 1 x analog input supporting various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types, and RTD, with a 100ms sample period and 0.1 to 1° accuracy. The controller also features heater current monitoring protection functions, 1 x digital input for user input, and 1 x analog output (0-10Vdc) for main control output 1.

Product Details

  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Analog outputs
    1 x analog output (0-10Vdc) (MAIN CONTROL OUTPUT 1)
  • Order code / Manufacturer SKU
    PXU41C30
  • Sub-range name
    PXU PID controllers series
  • Design
    1 user input RS-485 analog retransm. output 0-10Vdc control analog output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Protection functions
    Heater current monitoring
  • Frequency
    10Hz analog input sampling rate
  • Product series / family name
    Process controllers
  • Mounting mode
    Flush
  • Main function
    Temperature controller (Digital)
  • Functions
    Digital temperature / process PID controller
  • Degree of protection
    IP65 NEMA 4X
  • Primary brand
    Red Lion
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Communication protocol
    RS-485
  • Digital inputs
    1 x digital input (user input)
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Ambient air temperature for operation
    0...+50 °C
  • Network frequency
    50/60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU41C30 on Applied Automation is $219.00. Order now.
