PXU41BE0 Red Lion Industrial Automation Components

PXU41BE0 on Applied Automation
Red Lion

Part#:PXU41BE0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

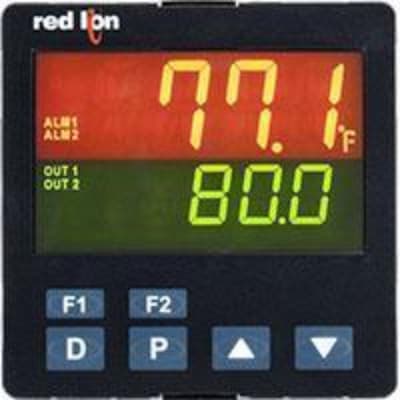

Red Lion PXU41BE0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It features a 1/4 DIN size (96x96mm) with an IP65 NEMA 4X degree of protection, making it suitable for various industrial environments. This model includes one user input, RS-485 communication, a C.T. input, and a 0-10Vdc control analog output, alongside a secondary relay control output. The display is equipped with 22mm orange and 14mm green digits for clear visibility. The PXU PID controllers series part operates on a 24Vdc supply voltage and supports a 10Hz analog input sampling rate. It offers one digital output (contact type) for secondary control output 2, and one analog input capable of accepting multiple signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, various thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it includes heater current monitoring protection functions, one digital input for user input, and one analog output (0-10Vdc) for main control output 1.

Product Details

  • Main function
    Temperature controller (Digital)
  • Functions
    Digital temperature / process PID controller
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Dimensions
    1/4 DIN (W96mm x H96mm / 3.77" x 3.77")
  • Sub-range name
    PXU PID controllers series
  • Mounting mode
    Flush
  • Protection functions
    Heater current monitoring
  • Contents
    1 x Current Transformer (CT) 40A/30.7mA ratio - 1/1300
  • Display
    2 rows x 4-digits negative backlit LCD display with orange characters (top row; 22mm high) and green characters (bottom row; 14mm high)
  • Primary brand
    Red Lion
  • Product series / family name
    Process controllers
  • Supply voltage (DC)
    24Vdc
  • Analog outputs
    1 x analog output (0-10Vdc) (MAIN CONTROL OUTPUT 1)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Design
    1 user input RS-485 C.T. input 0-10Vdc control analog output secondary rly. control output 1/4 DIN (96x96mm) 22mm orange / 14mm green digits
  • Communication protocol
    RS-485
  • Digital inputs
    1 x digital input (user input)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Frequency
    10Hz analog input sampling rate
  • Degree of protection
    IP65 NEMA 4X
  • Order code / Manufacturer SKU
    PXU41BE0
  • Ambient air temperature for operation
    0...+50 °C
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU41BE0 on Applied Automation is $261.00. Order now.
