PXU41B30 Red Lion Industrial Automation Components

PXU41B30 on Applied Automation
Red Lion

Part#:PXU41B30

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

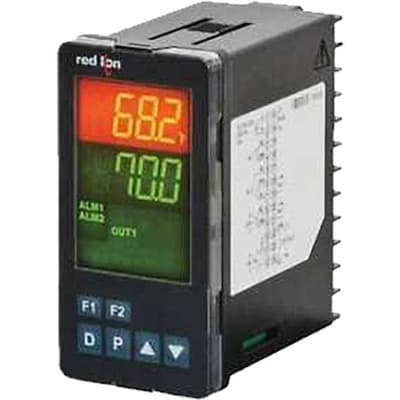

Red Lion PXU41B30 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design that includes 1 user input, RS-485 communication, C.T. input, 0-10Vdc control analog output, and a secondary relay control output. The device is housed in a 1/8 DIN vertical enclosure measuring 49.5mm wide by 96.5mm high, with 12mm orange/green digits for display. It requires a supply voltage of 100-240Vac, accommodating a wide range of voltages from 100Vac to 240Vac. Part of the PXU PID controllers series, it offers a degree of protection rated at IP65 NEMA 4X. The PXU41B30 has a frequency of 10Hz for analog input sampling, utilizes the RS-485 communication protocol, and includes 1 digital output for secondary control, 1 analog input capable of accepting various signal types including thermocouples and RTD with a 100ms sample period and 0.1 to 1° accuracy, and 1 analog output (0-10Vdc) for main control. It also features protection functions such as heater current monitoring and includes 1 digital input for user-defined functions.

Product Details

  • Mounting mode
    Flush
  • Design
    1 user input RS-485 C.T. input 0-10Vdc control analog output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Degree of protection
    IP65 NEMA 4X
  • Contents
    1 x Current Transformer (CT) 40A/30.7mA ratio - 1/1300
  • Product series / family name
    Process controllers
  • Digital inputs
    1 x digital input (user input)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Main function
    Temperature controller (Digital)
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Protection functions
    Heater current monitoring
  • Network frequency
    50/60 Hz
  • Primary brand
    Red Lion
  • Sub-range name
    PXU PID controllers series
  • Functions
    Digital temperature / process PID controller
  • Analog outputs
    1 x analog output (0-10Vdc) (MAIN CONTROL OUTPUT 1)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Order code / Manufacturer SKU
    PXU41B30
  • Communication protocol
    RS-485
  • Ambient air temperature for operation
    0...+50 °C
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Frequency
    10Hz analog input sampling rate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU41B30 on Applied Automation is $233.00. Order now.

PXU41B30 Related Documents

Red Lion - PXU - Manual.pdfRed Lion - PXU - Installation Guide.pdfRed Lion - PXU - Data Sheet.pdf

Manufacturer warranty

PXU41B30 Red Lion

$233.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$233.00

$233.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

Your Safety, Our Priority.

Warranty

Manufacturer warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare PXU41B30 with other Industrial Automation Components products

Mounting mode

Design

Degree of protection

Contents

Product series / family n...

Digital inputs

Analog inputs

Display

Main function

Supply voltage (AC)

Selected product

PXU41B30
Backordered
PXU41B30
Red Lion

Red Lion PXU41B30 is a digital temperature/process PID controller designed for flush mounting and op...

Mounting modeFlush

Design1 user input RS-485 C.T. inp...

Degree of protectionIP65 NEMA 4X

Contents1 x Current Transformer (CT)...

Product series / family nameProcess controllers

Digital inputs1 x digital input (user inpu...

Analog inputs1 x analog input (4-20mA / 0...

Display2 rows x 4-digits negative i...

Main functionTemperature controller (Digi...

Supply voltage (AC)100-240Vac (100Vac / 110Vac ...

E2A-M18KS08-WP-C3 2M
1 in stock
E2A-M18KS08-WP-C3 2M
Omron

E2A-M18KS08-WP-C3 2M, DC 3-wire Extended Range Proximity Sensor, Supply voltage: 12 to 24 VDC, Size:...

Mounting mode-

Design-

Degree of protection-

Contents-

Product series / family name-

Digital inputs-

Analog inputs-

Display-

Main function-

Supply voltage (AC)-

G36-10-01
20 in stock
G36-10-01
SMC

G(A)36, Pressure Gauge for General Purpose (O.D. 37)

Mounting mode-

Design-

Degree of protection-

Contents-

Product series / family name-

Digital inputs-

Analog inputs-

Display-

Main function-

Supply voltage (AC)-

About the manufacturer

Red Lion

Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Recently viewed products

Relevant products

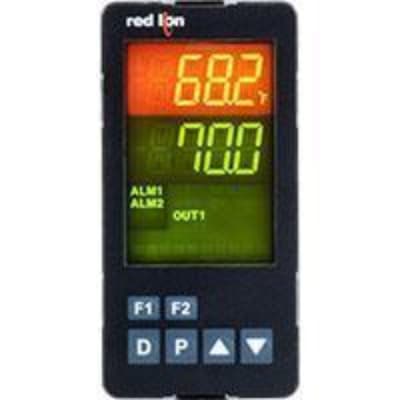

PXU400C0 on Applied Automation

PXU400C0

Verified stock: 0

Red Lion PXU400C0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This unit, part of the PXU PID controllers series, features a 0-10Vdc control analog output and is housed in a 1/8 DIN vertical enclosure measuring 49.5mm wide by 96.5mm high, with 12mm orange/green digits for display. It offers a degree of protection rated at IP65 NEMA 4X and requires a 24Vdc supply voltage. The PXU400C0 supports a 10Hz analog input sampling rate and includes 1 digital output (contact type) for secondary control output 2. It accepts 1 analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, and multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK) as well as RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features heater current monitoring for protection and 1 analog output (0-10Vdc) for main control output 1.

Red Lion

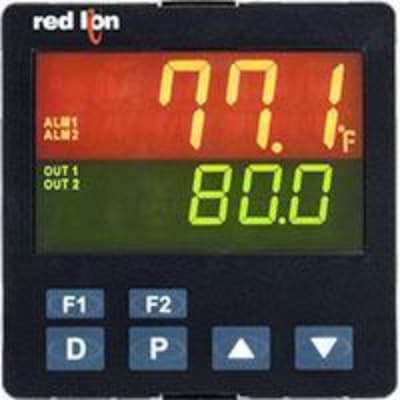

PXU41AE0 on Applied Automation
