PXU41AB0 Red Lion Industrial Automation Components

PXU41AB0 on Applied Automation
Red Lion

Part#:PXU41AB0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

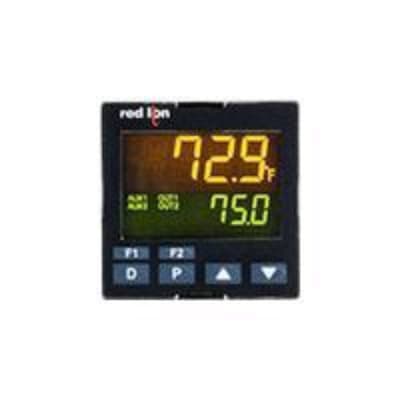

Red Lion PXU41AB0 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C. It features 2 user inputs, RS-485 communication protocol, and a 0-10Vdc control analog output alongside a secondary relay control output, fitting within the 1/16 DIN size standard (48mm x 48mm / 1.89" x 1.89"). This model, part of the PXU PID controllers series, boasts an 11mm orange / 7mm green digit display and offers a degree of protection rated at IP65 NEMA 4X. It requires a 24Vdc supply voltage and supports a 10Hz analog input sampling rate. The controller includes 1 x digital output (contact type) for secondary control output 2, and 1 x analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. Heater current monitoring is featured as a protection function, and the unit also provides 2 x digital inputs for user inputs and 1 x analog output (0-10Vdc) for main control output 1.

Product Details

  • Main function
    Temperature controller (Digital)
  • Communication protocol
    RS-485
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Replaces
    P4810111 P4810107 P4810117 T4810111 T4810117
  • Product series / family name
    Process controllers
  • Functions
    Digital temperature / process PID controller
  • Analog outputs
    1 x analog output (0-10Vdc) (MAIN CONTROL OUTPUT 1)
  • Protection functions
    Heater current monitoring
  • Order code / Manufacturer SKU
    PXU41AB0
  • Primary brand
    Red Lion
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 11mm high) and green characters (bottom row; 7mm high)
  • Mounting mode
    Flush
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Ambient air temperature for operation
    0...+50 °C
  • Frequency
    10Hz analog input sampling rate
  • Sub-range name
    PXU PID controllers series
  • Supply voltage (DC)
    24Vdc
  • Digital inputs
    2 x digital inputs (user inputs)
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Design
    2 user inputs RS-485 0-10Vdc control analog output secondary rly. control output 1/16 DIN (48x48mm) 11mm orange / 7mm green digits
  • Degree of protection
    IP65 NEMA 4X
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU41AB0 on Applied Automation is $196.00. Order now.
