PXU400B0 Red Lion Industrial Automation Components

PXU400B0 on Applied Automation
Red Lion

Part#:PXU400B0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

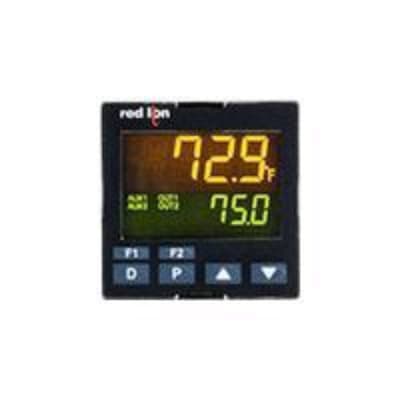

Red Lion PXU400B0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This model, part of the PXU PID controllers series, features a 0-10Vdc control analog output and is housed in a 1/16 DIN (48mm x 48mm / 1.89" x 1.89") enclosure with an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It is powered by a 24Vdc supply voltage and offers a 10Hz analog input sampling rate. The PXU400B0 supports one analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; with a 100ms sample period and 0.1...1° accuracy) and includes heater current monitoring as a protection function. Additionally, it provides one analog output (0-10Vdc) for main control output 1. The display features 11mm orange / 7mm green digits for clear readability.

Product Details

  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 11mm high) and green characters (bottom row; 7mm high)
  • Design
    0-10Vdc control analog output 1/16 DIN (48x48mm) 11mm orange / 7mm green digits
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Replaces
    P4800011
  • Main function
    Temperature controller (Digital)
  • Analog outputs
    1 x analog output (0-10Vdc) (MAIN CONTROL OUTPUT 1)
  • Supply voltage (DC)
    24Vdc
  • Mounting mode
    Flush
  • Frequency
    10Hz analog input sampling rate
  • Primary brand
    Red Lion
  • Product series / family name
    Process controllers
  • Functions
    Digital temperature / process PID controller
  • Degree of protection
    IP65 NEMA 4X
  • Protection functions
    Heater current monitoring
  • Sub-range name
    PXU PID controllers series
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Ambient air temperature for operation
    0...+50 °C
  • Order code / Manufacturer SKU
    PXU400B0
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU400B0 on Applied Automation is $167.00. Order now.

PXU400B0 Related Documents

Red Lion - PXU - Data Sheet.pdfRed Lion - PXU - Installation Guide.pdfRed Lion - PXU - Manual.pdf
