PXU40030 Red Lion Industrial Automation Components

PXU40030 on Applied Automation
Red Lion

Part#:PXU40030

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

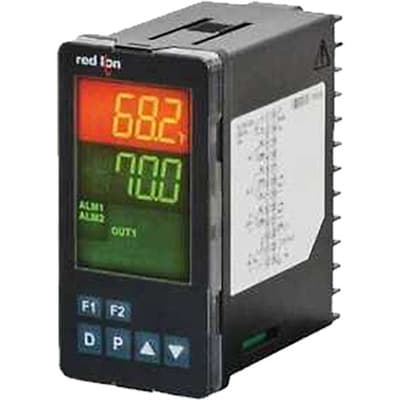

Red Lion PXU40030 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a 0-10Vdc control analog output in a 1/8 DIN vertical configuration, measuring 49.5mm in width and 96.5mm in height, with 12mm orange/green digits for display. The supply voltage requirement is AC 100-240Vac, accommodating a wide range of voltages including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. As part of the PXU PID controllers series, it offers a degree of protection rated at IP65 NEMA 4X. The controller has a frequency of 10Hz for analog input sampling rate and includes 1 digital output (contact type) for secondary control output 2, and 1 analog input supporting various signals (4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types, and RTD) with a 100ms sample period and 0.1 to 1° accuracy. It also features heater current monitoring for protection and 1 analog output (0-10Vdc) for main control output 1.

Product Details

  • Primary brand
    Red Lion
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Degree of protection
    IP65 NEMA 4X
  • Product series / family name
    Process controllers
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Protection functions
    Heater current monitoring
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Sub-range name
    PXU PID controllers series
  • Main function
    Temperature controller (Digital)
  • Mounting mode
    Flush
  • Functions
    Digital temperature / process PID controller
  • Frequency
    10Hz analog input sampling rate
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Order code / Manufacturer SKU
    PXU40030
  • Network frequency
    50/60 Hz
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Design
    0-10Vdc control analog output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Ambient air temperature for operation
    0...+50 °C
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Analog outputs
    1 x analog output (0-10Vdc) (MAIN CONTROL OUTPUT 1)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU40030 on Applied Automation is $177.00. Order now.

PXU40030 Related Documents

Red Lion - PXU - Installation Guide.pdfRed Lion - PXU - Manual.pdfRed Lion - PXU - Data Sheet.pdf

Manufacturer warranty

PXU40030 Red Lion

$177.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$177.00

$177.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
