PXU31CC0 Red Lion Industrial Automation Components

PXU31CC0 on Applied Automation
Red Lion

Part#:PXU31CC0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

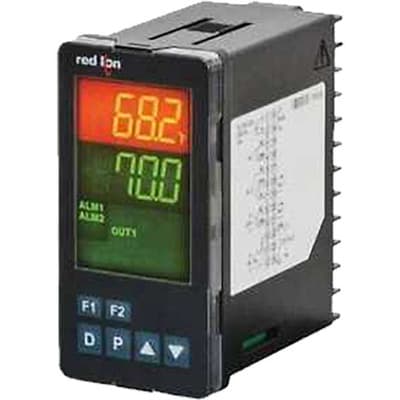

Red Lion PXU31CC0 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C. It features a 1/8 DIN vertical design, measuring 49.5mm in width and 96.5mm in height, with 12mm orange/green digits for display. This model is part of the PXU PID controllers series and offers a degree of protection rated at IP65 NEMA 4X. It operates on a 24Vdc supply voltage and supports a 10Hz analog input sampling rate. Communication is facilitated through an RS-485 protocol. The PXU31CC0 includes one digital output (contact type) for secondary control, one analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. It also features heater current monitoring for protection, one digital input for user input, and one analog output (4-20mA) for main control output.

Product Details

  • Product series / family name
    Process controllers
  • Design
    1 user input RS-485 analog retransm. output 4-20mA control analog output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Ambient air temperature for operation
    0...+50 °C
  • Protection functions
    Heater current monitoring
  • Frequency
    10Hz analog input sampling rate
  • Order code / Manufacturer SKU
    PXU31CC0
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Functions
    Digital temperature / process PID controller
  • Main function
    Temperature controller (Digital)
  • Supply voltage (DC)
    24Vdc
  • Mounting mode
    Flush
  • Degree of protection
    IP65 NEMA 4X
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Digital inputs
    1 x digital input (user input)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Primary brand
    Red Lion
  • Sub-range name
    PXU PID controllers series
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Analog outputs
    1 x analog output (4-20mA) (MAIN CONTROL OUTPUT)
  • Communication protocol
    RS-485

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PXU31CC0 on Applied Automation is $223.00. Order now.
