G10R1000 Red Lion Industrial Automation Components

G10R1000 on Applied Automation
Red Lion

Part#:G10R1000

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion G10R1000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use, featuring a dual Ethernet connection. It includes 2 x RJ45 ports for Ethernet connectivity and 2 x RJ11 ports alongside 1 x RJ45 port for RS-232 and RS-422 / RS-485 communications, respectively. This unit supports multiple communication protocols, including RS-232, RS-422, RS-485, and Ethernet. It operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. The G10R1000 is designed to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. It has the capacity for connection to 7 x module slots, with a typical power consumption of 12 W and a maximum of 48 W. The electrical durability of its backlight is rated at 70,000 hours. For storage, it includes an SD card slot and features a screen brightness of 400cd/m2.

Product Details

  • Connection capacity
    7 x module slots
  • Benefits
    Sleek full-color HMI touchscreens Versatile module and expansion options Rugged environmental specifications Industry-Leading protocol conversion Powerful integration functionality
  • Communication protocol
    RS-232 RS-422 RS-485 Ethernet
  • Electrical durability
    (Backlight) 70 000 hours
  • Storage type
    SD card slot
  • Power consumption
    (Typical) 12 W(Maximum) 48 W
  • Brightness
    400cd/m2
  • Mounting location
    Indoor
  • Sub-range name
    HMI Rugged Graphite series
  • Design
    dual Ethernet for indoor use only
  • Main function
    HMI / Display unit
  • Functions
    HMI operator touchscreen panel
  • Ambient air temperature for operation
    -20...+60 °C
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc)
  • Connection type
    2 x RJ45 ports (Ethernet) 2 x RJ11 ports (RS-232) 1 x RJ45 port (RS-422 / RS-485)
  • Compliant with standard(s)
    CE ANSI/ISA 12.12.01 IEC/EN 61010-1 IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations UL 61010-1 /-2-201 C22.2 No. 213-M1987; 157-92 RoHS compliant ABS UL Listed (Class I Division 2 Groups A/B/C/D) UL Listed (Class II Division 2 Groups
  • Degree of protection
    IP66 NEMA 4X
  • Product series / family name
    HMIs (Human-Machine Interfaces)
  • Display
    10" / 800x600pixels (SVGA) touchscreen LCD 16.7M colors display with backlight
  • Order code / Manufacturer SKU
    G10R1000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of G10R1000 on Applied Automation is $5,254.00. Order now.

G10R1000 Related Documents

Red Lion - Graphite HMIs - Data Sheet.pdfRed Lion - Industrial Automation Product Guide.pdf

Manufacturer warranty

G10R1000 Red Lion

$5,254.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$5,254.00

$5,254.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

Your Safety, Our Priority.

Warranty

Manufacturer warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare G10R1000 with other Industrial Automation Components products

Connection capacity

Benefits

Communication protocol

Electrical durability

Storage type

Power consumption

Brightness

Mounting location

Sub-range name

Design

Selected product

G10R1000
Backordered
G10R1000
Red Lion

Red Lion G10R1000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor u...

Connection capacity7 x module slots

BenefitsSleek full-color HMI touchsc...

Communication protocolRS-232 RS-422 RS-485 Etherne...

Electrical durability(Backlight) 70 000 hours

Storage typeSD card slot

Power consumption(Typical) 12 W(Maximum) 48 W

Brightness400cd/m2

Mounting locationIndoor

Sub-range nameHMI Rugged Graphite series

Designdual Ethernet for indoor use...

E2A-M18KS08-WP-C3 2M
1 in stock
E2A-M18KS08-WP-C3 2M
Omron

E2A-M18KS08-WP-C3 2M, DC 3-wire Extended Range Proximity Sensor, Supply voltage: 12 to 24 VDC, Size:...

Connection capacity-

Benefits-

Communication protocol-

Electrical durability-

Storage type-

Power consumption-

Brightness-

Mounting location-

Sub-range name-

Design-

AS2201F-U01-10
10 in stock
AS2201F-U01-10
SMC

AS*2,3*1F-U*, Speed Controller w/Uni One-Touch Fitting Series

Connection capacity-

Benefits-

Communication protocol-

Electrical durability-

Storage type-

Power consumption-

Brightness-

Mounting location-

Sub-range name-

Design-

About the manufacturer

Red Lion

Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Recently viewed products

Relevant products

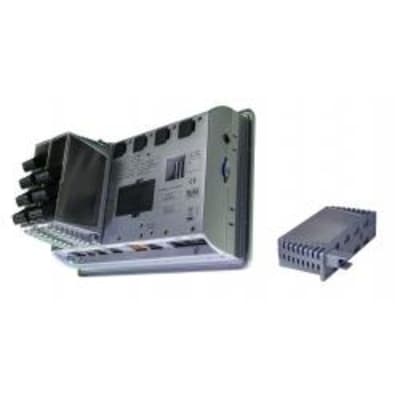

G10R0000 on Applied Automation
